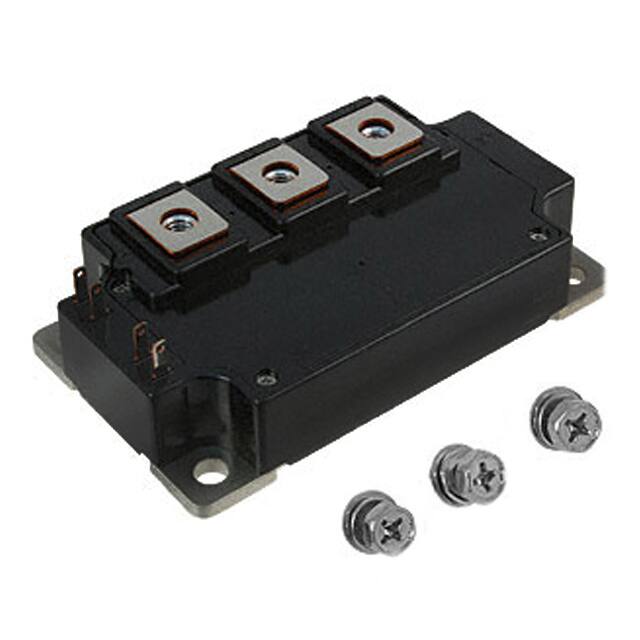

CM300DU-24NFH

Teknik Özellikler

Ntc Thermistor

No

Gateemitter Leakage Current

1 uA

Parça Durumu

Discontinued

RoHS Durumu

RoHS Compliant

Currentcollector Ic Max

300A

Continuous Collector Current At25 C

300 A

Height Mm

29 mm

Minimum Operating Temperature

- 40 C

Montaj Tipi

Chassis Mount

Input

Standard

Tedarikçi Cihaz Paketi

Module

Collector Emitter Voltage Vceo Max

1200 V

Voltage Collector Emitter Breakdown Max

1200V

Fabrika Paket Adedi

10

Montaj

Chassis Mount

Max Power Dissipation

1.13kW

Pd Power Dissipation

1130 W

Üretici Parça No

CM300DU-24NFH

Çalışma Sıcaklığı

-40°C~150°C TJ

Seri

IGBTMOD™

Max Collector Current

300A

Input Capacitance Cies Vce

47nF @ 10V

Kılıf / Paket

Module

Maks. Çalışma Sıcaklığı

+ 150 C

Montaj Stili

Screw

Configuration

Half Bridge

Maximum Gate Emitter Voltage

20 V

Collector Emitter Voltage Vceo

6.5V

Collectoremitter Breakdown Voltage

1.2kV

Power Max

1130W

Current Collector Cutoff Max

1mA

Input Capacitance

47nF

Pin Sayısı

7

Vceon Max Vge Ic

6.5V @ 15V, 300A

RoHS

Details

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2009

Collectoremitter Saturation Voltage

5 V
