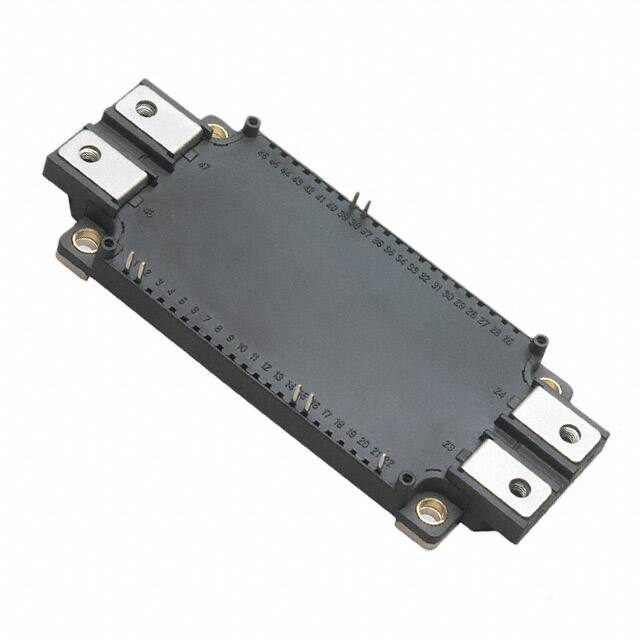

CM200DX-24S

Teknik Özellikler

Input Capacitance Cies Vce

20nF @ 10V

REACH Uyumluluk Kodu

unknown

Number Of Elements

2

Seri

IGBTMOD™

Max Collector Current

200A

Parça Durumu

Discontinued

RoHS Durumu

RoHS Compliant

Collector Emitter Voltage Vceo Max

1200 V

Element Configuration

Dual

Yayın Yılı

2010

Fabrika Paket Adedi

10

Pd Power Dissipation

1500 W

Transistor Application

POWER CONTROL

Case Connection

ISOLATED

RoHS

Details

Minimum Operating Temperature

- 40 C

Maks. Çalışma Sıcaklığı

+ 150 C

Configuration

Half Bridge

Montaj

Chassis Mount

Pin Sayısı

11

Terminal Sayısı

11

Vceon Max Vge Ic

2.15V @ 15V, 200A

Kılıf / Paket

Module

Ntc Thermistor

Yes

Continuous Collector Current At25 C

200 A

Collector Emitter Voltage Vceo

2.15V

Input Capacitance

20nF

Voltage Collector Emitter Breakdown Max

1200V

Power Max

1500W

Input

Standard

Terminal Formu

UNSPECIFIED

Montaj Tipi

Chassis Mount

Çalışma Sıcaklığı

-40°C~150°C TJ

Collectoremitter Breakdown Voltage

1.2kV

Nem Hassasiyeti (MSL)

1 (Unlimited)

Polaritychannel Type

N-CHANNEL

Collectoremitter Saturation Voltage

1.8 V

Terminal Pozisyonu

UPPER

Gateemitter Leakage Current

0.5 uA

Max Power Dissipation

1.5kW
