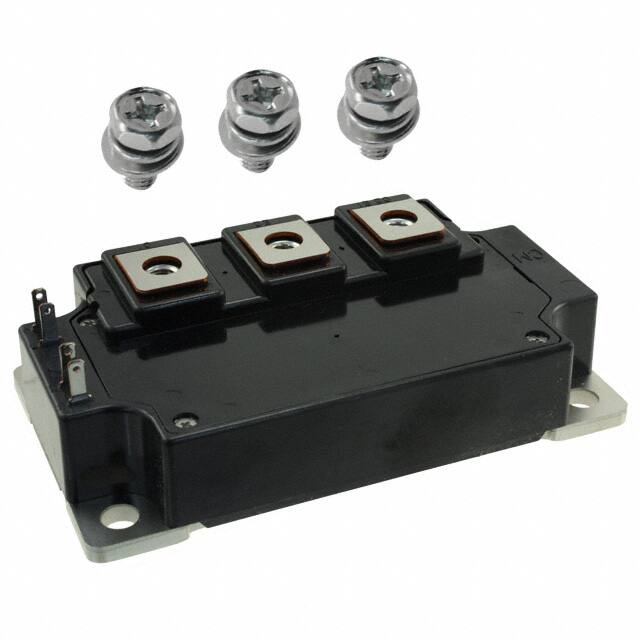

CM200DU-24F

Teknik Özellikler

Configuration

Half Bridge

Pin Sayısı

7

Montaj

Chassis Mount

Terminal Sayısı

7

Transistor Application

MOTOR CONTROL

Case Connection

ISOLATED

Parça Durumu

Obsolete

Igbt Type

Trench

Yayın Yılı

2001

RoHS Durumu

RoHS Compliant

Number Of Elements

2

Input Capacitance Cies Vce

78nF @ 10V

Max Collector Current

200A

Seri

IGBTMOD™

Terminal Pozisyonu

UPPER

Collectoremitter Saturation Voltage

1.2kV

Current Collector Cutoff Max

1mA

Transistor Element Material

SILICON

Max Power Dissipation

890W

Input

Standard

Nem Hassasiyeti (MSL)

1 (Unlimited)

Collectoremitter Breakdown Voltage

1.2kV

Çalışma Sıcaklığı

-40°C~150°C TJ

Montaj Tipi

Chassis Mount

Polaritychannel Type

N-CHANNEL

Terminal Formu

UNSPECIFIED

Collector Emitter Voltage Vceo

2.4V

Reach Svhc

Unknown

Voltage Collector Emitter Breakdown Max

1200V

Power Max

890W

Input Capacitance

78nF

Gateemitter Voltagemax

20V

Vceon Max Vge Ic

2.4V @ 15V, 200A

Ntc Thermistor

No

Kılıf / Paket

Module
