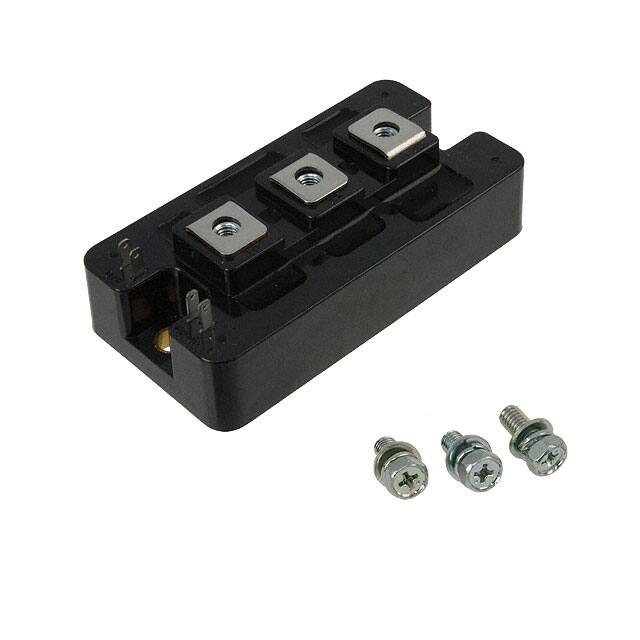

CM150DY-24H

Teknik Özellikler

Kılıf / Paket

Module

Power Dissipation

600W

Montaj Tipi

Chassis Mount

Vceon Max Vge Ic

3.4V @ 15V, 150A

Montaj

Chassis Mount

Voltage Collector Emitter Breakdown Max

1200V

Current Collector Cutoff Max

1mA

Polaritychannel Type

N-CHANNEL

Input Capacitance

30nF

Ntc Thermistor

No

Seri

IGBTMOD™

Parça Durumu

Obsolete

Max Collector Current

150A

Terminal Formu

UNSPECIFIED

Terminal Sayısı

7

Transistor Element Material

SILICON

Input Capacitance Cies Vce

30nF @ 10V

RoHS Durumu

Non-RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-40°C~150°C TJ

Yayın Yılı

1998

Power Max

1100W

Configuration

Half Bridge

Gateemitter Voltagemax

20V

Terminal Pozisyonu

UPPER

Case Connection

ISOLATED

Collectoremitter Breakdown Voltage

1.2kV

Pin Sayısı

7

Collector Emitter Voltage Vceo

3.4V

Number Of Elements

2

Transistor Application

MOTOR CONTROL

Max Power Dissipation

1.1kW

Input

Standard
