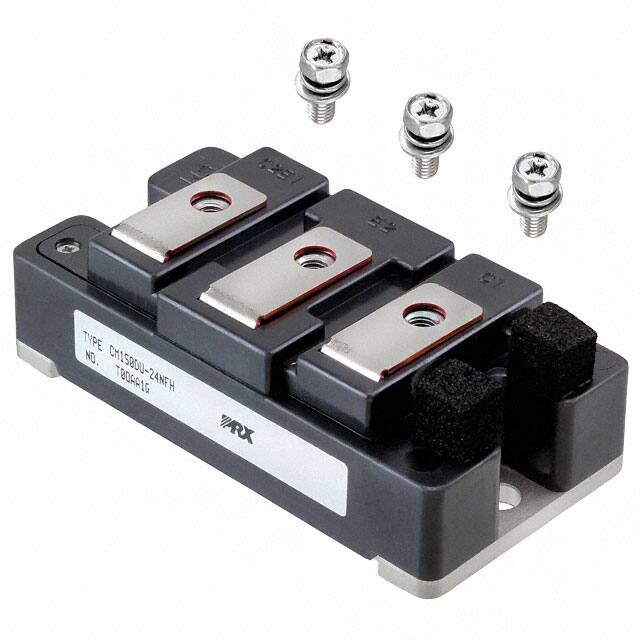

CM150DU-24NFH

Teknik Özellikler

Collectoremitter Saturation Voltage

1.2kV

Configuration

Half Bridge

Power Max

650W

Yayın Yılı

2009

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-40°C~150°C TJ

Max Breakdown Voltage

1.2kV

Transistor Application

POWER CONTROL

Input

Standard

Reach Svhc

Unknown

Max Power Dissipation

650W

Number Of Elements

2

Collector Emitter Voltage Vceo

6.5V

Case Connection

ISOLATED

Pin Sayısı

7

Collectoremitter Breakdown Voltage

1.2kV

Element Configuration

Dual

Terminal Pozisyonu

UPPER

Current Collector Cutoff Max

1mA

Voltage Collector Emitter Breakdown Max

1200V

Vceon Max Vge Ic

6.5V @ 15V, 150A

Montaj

Chassis Mount, Screw

Montaj Tipi

Chassis Mount

Kılıf / Paket

Module

Input Capacitance Cies Vce

24nF @ 10V

Transistor Element Material

SILICON

RoHS Durumu

RoHS Compliant

Max Collector Current

150A

Terminal Formu

UNSPECIFIED

Terminal Sayısı

7

Pin Sayısı

7

Parça Durumu

Obsolete

Seri

IGBTMOD™

Kurşunsuz Kodu

yes

Ntc Thermistor

No

Input Capacitance

24nF

Polaritychannel Type

N-CHANNEL
