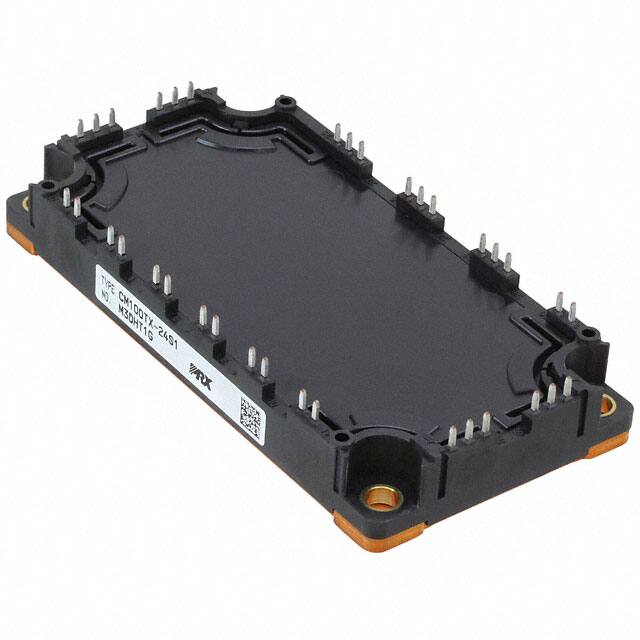

CM100TX-24S1

Teknik Özellikler

RoHS

Details

Gateemitter Leakage Current

0.5 uA

Max Collector Current

100A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Maks. Çalışma Sıcaklığı

+ 150 C

Yayın Yılı

2013

Collector Emitter Voltage Vceo Max

1200 V

Input Capacitance

10nF

Kılıf / Paket

Module

Tedarikçi Cihaz Paketi

Module

Vceon Max Vge Ic

2.25V @ 15V, 100A

Reach Svhc

Unknown

Maks. Çalışma Sıcaklığı

150°C

Parça Durumu

Discontinued

Configuration

Three Level Inverter

Input Capacitance Cies Vce

10nF @ 10V

Power Max

625W

Collectoremitter Breakdown Voltage

1.2kV

Input

Standard

Çalışma Sıcaklığı

-40°C~150°C TJ

Current Collector Cutoff Max

1mA

Ntc Thermistor

Yes

Collector Emitter Voltage Vceo

2.25V

RoHS Durumu

RoHS Compliant

Voltage Collector Emitter Breakdown Max

1200V

Pin Sayısı

35

Fabrika Paket Adedi

10

Max Power Dissipation

625W

Minimum Operating Temperature

- 40 C

Collectoremitter Saturation Voltage

1.8V

Pd Power Dissipation

625 W

Currentcollector Ic Max

100A

Continuous Collector Current At25 C

100 A
