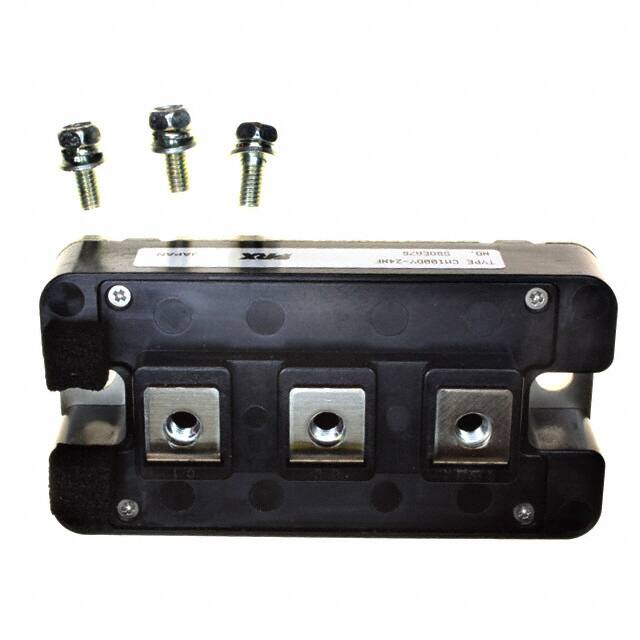

CM100DY-24NF

Teknik Özellikler

Vceon Max Vge Ic

2.5V @ 15V, 100A

Configuration

Half Bridge

Parça Durumu

Discontinued

Seri

IGBTMOD™

Collectoremitter Breakdown Voltage

1.2kV

Pin Sayısı

7

Gateemitter Leakage Current

0.5 uA

Transistor Application

MOTOR CONTROL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Maks. Çalışma Sıcaklığı

+ 150 C

Case Connection

ISOLATED

Collector Emitter Voltage Vceo Max

1200 V

Input Capacitance

23nF

Transistor Element Material

SILICON

Terminal Pozisyonu

UPPER

Voltage Rated Dc

1.2kV

Collectoremitter Saturation Voltage

1.8 V

Üretici Parça No

CM100DY-24NF

Continuous Collector Current At25 C

100 A

Montaj

Chassis Mount, Screw

Maximum Gate Emitter Voltage

20 V

Current Collector Cutoff Max

1mA

Kurşunsuz Kodu

yes

Polaritychannel Type

N-CHANNEL

Height Mm

29 mm

Pin Sayısı

7

Voltage Collector Emitter Breakdown Max

1200V

Kılıf / Paket

Module

Element Configuration

Dual

Number Of Elements

2

Montaj Tipi

Chassis Mount

Terminal Sayısı

7

Input Capacitance Cies Vce

23nF @ 10V

Input

Standard

Terminal Formu

UNSPECIFIED

RoHS

Details

Max Collector Current

100A

Yayın Yılı

2003

Gateemitter Voltagemax

20V

Max Power Dissipation

650W
