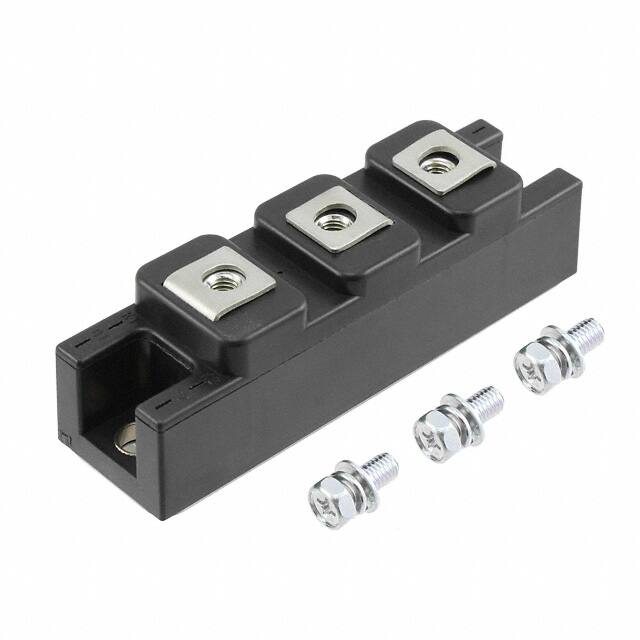

CDD11610

Teknik Özellikler

Operating Temperature Junction

-40°C~150°C

Rpm

3,450 RPM

Terminal Formu

UNSPECIFIED

Pin Sayısı

3

Terminal Pozisyonu

UPPER

Additional Feature

UL RECOGNIZED

Diode Configuration

1 Pair Series Connection

Ambalaj

Bulk

Kurşunsuz Kodu

yes

Montaj Tipi

Chassis Mount

Case Connection

ISOLATED

Diode Element Material

SILICON

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

100A

Current Reverse Leakage Vr

15mA @ 1600V

Speed

Standard Recovery >500ns, > 200mA (Io)

Forward Voltage

1.35V

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Number Of Phases

1

RoHS Durumu

RoHS Compliant

Max Repetitive Reverse Voltage Vrrm

1.6kV

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Reach Svhc

Unknown

Parça Durumu

Obsolete

Qualification Status

Not Qualified

Kılıf / Paket

POW-R-BLOK™ Module

HTS Kodu

8541.10.00.80

Max Reverse Voltage Dc

1.6kV

Composition

Rolled Steel

Terminal Sayısı

3

Voltage Dc Reverse Vr Max

1600V

Operating Temperature Max

125°C

Average Rectified Current

100A

Applications

POWER

Üretici Parça No

C1161

Phase

1

Voltage Rated Dc

1.6kV

Voltage Forward Vf Max If

1.35V @ 320A

Yayın Yılı

2000

Diode Type

Standard
