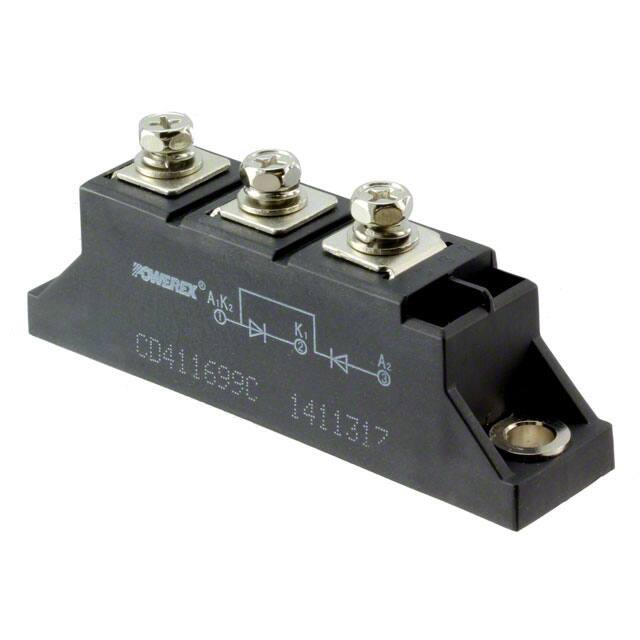

CD411699C

Teknik Özellikler

Diode Configuration

1 Pair Series Connection

Max Repetitive Reverse Voltage Vrrm

1.6kV

Reverse Currentmax

8000μA

Pin Sayısı

3

Montaj

Chassis Mount, Screw

Terminal Sayısı

3

Additional Feature

UL RECOGNIZED

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

20 Weeks

Min. Çalışma Sıcaklığı

-40°C

Forward Voltage

1.55V

HTS Kodu

8541.10.00.80

Case Connection

ISOLATED

Parça Durumu

Active

Operating Temperature Junction

-40°C~150°C

Max Reverse Voltage Dc

1.6kV

RoHS Durumu

RoHS Compliant

Element Configuration

Dual

Radyasyon Dayanımı

No

Yayın Yılı

2011

Maks. Çalışma Sıcaklığı

150°C

Number Of Elements

2

Voltage Dc Reverse Vr Max

1600V

Ambalaj

Bulk

Number Of Phases

1

Terminal Pozisyonu

UPPER

Diode Type

Standard

Terminal Formu

UNSPECIFIED

Montaj Tipi

Chassis Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Forward Current

100A

Reach Svhc

Unknown

Diode Element Material

SILICON

Current Reverse Leakage Vr

8mA @ 1600V

Speed

Standard Recovery >500ns, > 200mA (Io)

Peak Nonrepetitive Surge Current

2.6kA

Average Rectified Current

100A

Kılıf / Paket

Module

Applications

GENERAL PURPOSE
