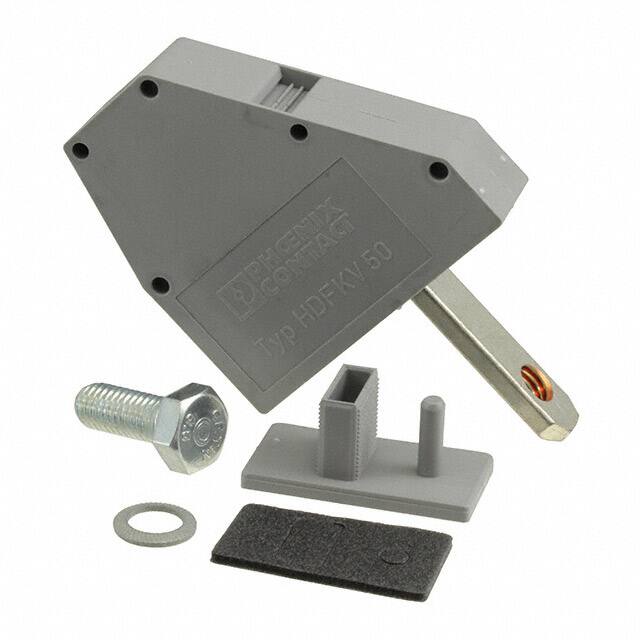

0708580

Teknik Özellikler

Montaj

Panel

Positions Per Level

1

Wire Gauge Min

0 AWG

Uzunluk

90mm

Depth

90mm

Akım Değeri

150A

Panel Thickness

0.039 ~ 0.236 1.0 ~ 6.0mm

Parça Durumu

Active

Max Supply Voltage

690V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

REACH Uyumluluk Kodu

unknown

Max Current Rating

150A

ECCN Kodu

EAR99

Wire Gauge Max

6 AWG

Safety Approval

UL

Terminal And Terminal Block Type

MODULAR TERMINAL BLOCK

Front Panel Wire Connection

Bolt/Screw Clamp - Wire Entry Parallel to Panel

Rear Panel Wire Connection

Screw Terminal

Wire Gauge

1/0-6 AWG

Kurşunsuz

Lead Free

Nominal Gerilim

690V

Flammability Rating

UL94 V-0

HTS Kodu

8536.69.40.40

Gerilim

600V

Renk

Gray

Akım

150A

Housing Material

Polyamide

Connector Type

Screw

Panel Mount Type

2 Piece

Sıra Sayısı

2

Number Of Decks

1

Weight

99.400005g

Genişlik

0.740 18.80mm

Gender

Female

RoHS Durumu

RoHS Compliant

Seri

CLIPLINE HDFKV

Housing Color

Grey

Fabrika Tedarik Süresi

4 Weeks
