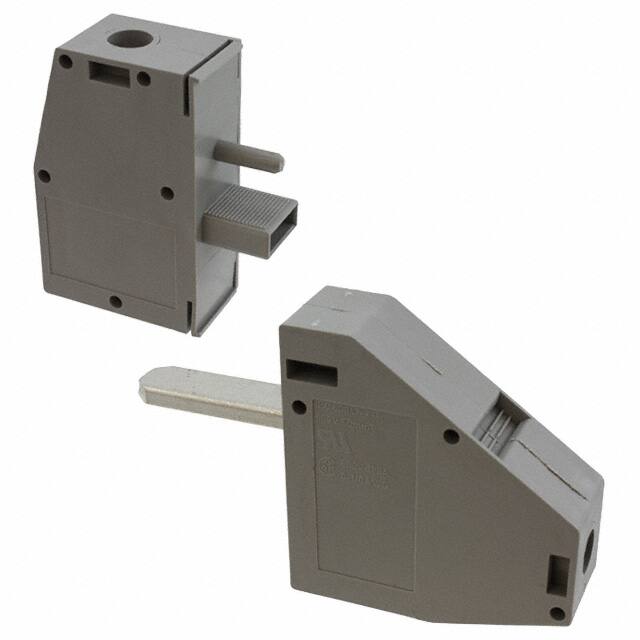

0708522

Teknik Özellikler

Montaj

Panel

Wire Gauge Min

0 AWG

Depth

91.6mm

Akım Değeri

150A

Parça Durumu

Active

Panel Thickness

0.039 ~ 0.236 1.0 ~ 6.0mm

Max Supply Voltage

690V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Number Of Ways

2

Max Current Rating

150A

ECCN Kodu

EAR99

Wire Gauge Max

6 AWG

Terminal And Terminal Block Type

MODULAR TERMINAL BLOCK

Number Of Contacts

2

Safety Approval

CB; CSA; GOST; KEMA; UL

Front Panel Wire Connection

Bolt/Screw Clamp - Wire Entry Parallel to Panel

Wire Gauge

1/0-6 AWG

Rear Panel Wire Connection

Bolt/Screw Clamp - Wire Entry 90° to Panel

Flammability Rating

UL94 V-0

Nominal Gerilim

690V

HTS Kodu

8536.69.40.40

Renk

Gray

Gerilim

600V

Akım

150A

Housing Material

Polyamide

Connector Type

Screw

Panel Mount Type

2 Piece

Number Of Positions Per Level

1

Additional Feature

STANDARD: UL 94V-0, PA

Sıra Sayısı

1

Radyasyon Dayanımı

No

Weight

133.379999g

Number Of Decks

1

Genişlik

0.740 18.80mm

Seri

CLIPLINE HDFKV

RoHS Durumu

RoHS Compliant

Fabrika Tedarik Süresi

4 Weeks
