PJQ5948V-AU_R2_002A1

Teknik Özellikler

Kılıf / Paket

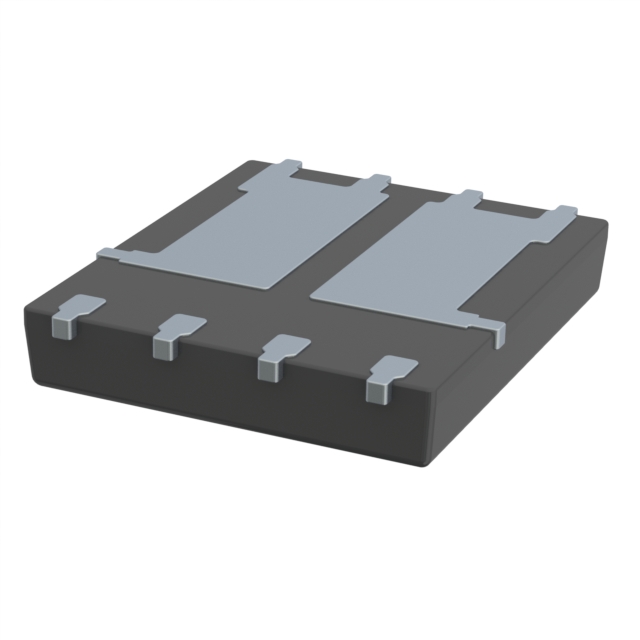

8-PowerTDFN

Input Capacitance Ciss Max Vds

673pF @ 25V

Gate Charge Qg Max Vgs

9.5nC @ 10V

Power Max

2.4W (Ta), 32W (Tc)

Temel Ürün No

PJQ5948

Configuration

2 N-Channel

Montaj Tipi

Surface Mount

Drain To Source Voltage Vdss

40V

Vgsth Max Id

3.5V @ 50μA

Rds On Max Id Vgs

13.4mOhm @ 10A, 10V

Ambalaj

Tape & Reel (TR)

Tedarikçi Cihaz Paketi

DFN5060B-8

Grade

Automotive

Current Continuous Drain Id25

10.5A (Ta), 35A (Tc)

Parça Durumu

Active

Qualification

AEC-Q101

Çalışma Sıcaklığı

-55°C ~ 175°C (TJ)
