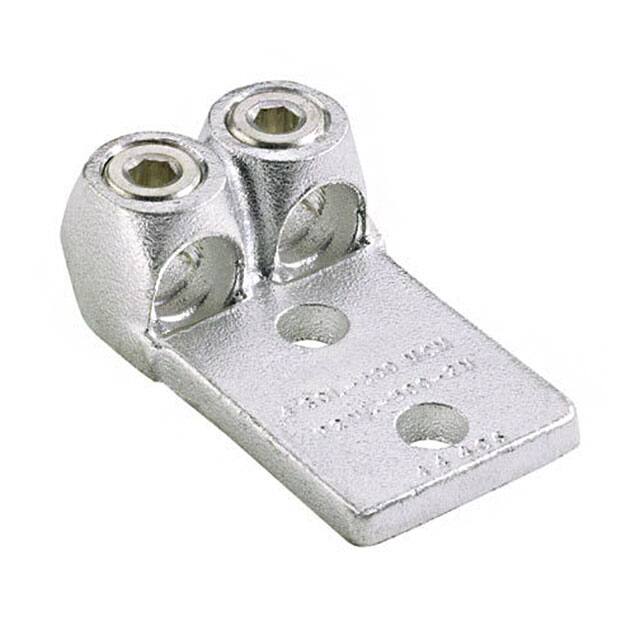

P2NLT-500-3

Teknik Özellikler

Yayın Yılı

2002

Width Outer Edges

2.500 63.50mm

Wire Cross Section

0.815 mm2

Insulation

Non-Insulated

Nem Hassasiyeti (MSL)

Not Applicable

Radyasyon Dayanımı

No

Orientation

Straight

Fabrika Tedarik Süresi

4 Weeks

Renk

Silver

Parça Durumu

Active

Montaj Tipi

Free Hanging (In-Line)

Seri

Pan-Lug®

Uzunluk

114.3mm

Wire Gauge

500MCM (kcmil)-4 AWG

Terminal

Screw

Length Overall

4.500 114.30mm

Weight

2.853096kg

Montaj

Free Hanging

Özellikler

2 Cable Entries, With Screw

Terminal And Terminal Block Type

RING TERMINAL

HTS Kodu

8536.90.40.00

ECCN Kodu

EAR99

Contact Finish

Tin

Terminal Type

Lug, Grounding

Terminal Style

Two Stud Holes

Ambalaj

Bulk

Contact Materials

Copper Alloy

Diameter Ring Id

0.563 (14.30mm)

Tab Thickness

0.380 9.65mm

RoHS Durumu

ROHS3 Compliant

Thickness

10mm
