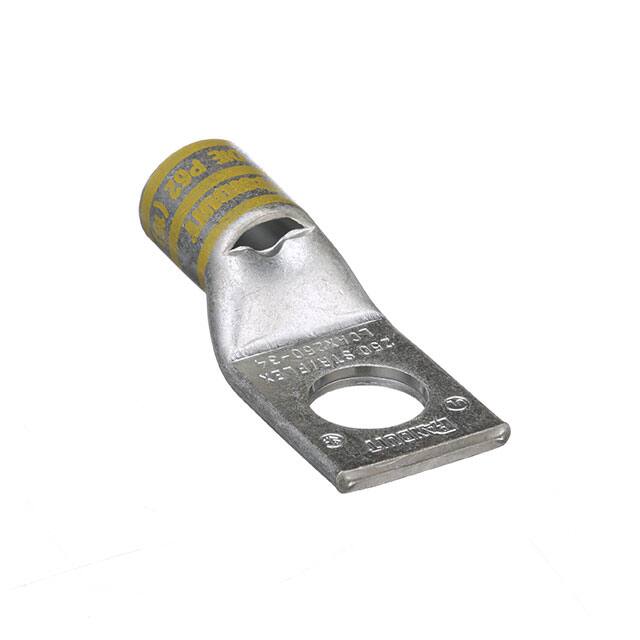

LCAX250-34-X

Teknik Özellikler

Insulation

Non-Insulated

Terminal Type

Rectangular Tongue

Contact Materials

Copper

Renk

Yellow

Wire Cross Section

161 mm2

HTS Kodu

8536.90.40.00

Terminal Style

Single Stud Hole

Uzunluk

78.232mm

ECCN Kodu

EAR99

Terminal And Terminal Block Type

RING TERMINAL

Parça Durumu

Active

Montaj Tipi

Free Hanging (In-Line)

Seri

Pan-Lug®

Nem Hassasiyeti (MSL)

Not Applicable

Width Outer Edges

1.280 32.51mm

Yayın Yılı

2001

Studtab Size

3/4 Stud

Body Plating

Tin

Length Overall

3.080 78.23mm

Contact Finish

Electro-Tin

Fabrika Tedarik Süresi

4 Weeks

Tab Thickness

0.170 4.32mm

Diameter Ring Id

0.780 (19.81mm)

Diameter Barrel Id

0.700 (17.78mm)

Montaj

Free Hanging

Diameter Barrel Od

0.880 (22.35mm)

Radyasyon Dayanımı

No

RoHS Durumu

ROHS3 Compliant

Wire Gauge

250MCM (kcmil)

Terminal

Crimp, Barrel

Ambalaj

Bulk

Depth

32.5mm
