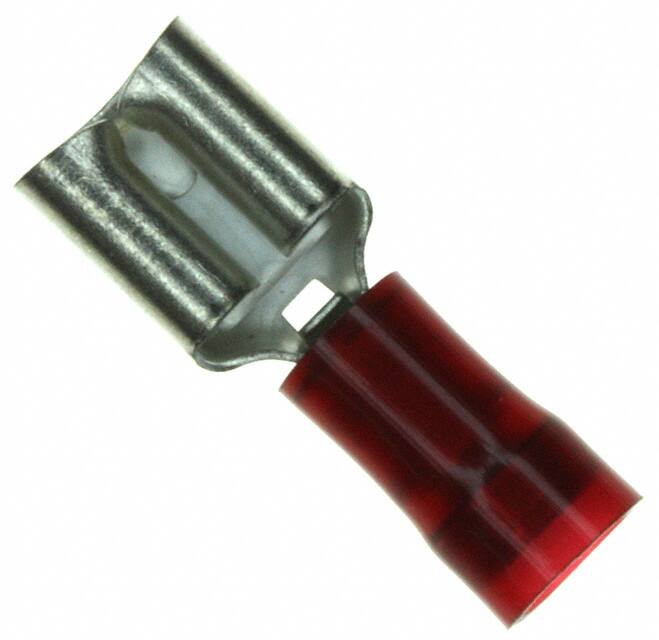

DNF18-250-M

Teknik Özellikler

Kurşunsuz

Lead Free

Wire Gauge

18-22 AWG

Parça Durumu

Active

Insulation Diameter

0.040 ~ 0.138 (1.02mm ~ 3.51mm)

Seri

Pan-Term®

Yayın Yılı

2005

Weight

1.224699kg

Length Overall

0.810 20.57mm

Material

Nylon

Wire Gauge Min

18 AWG

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

Not Applicable

Özellikler

Serrated Termination

Contact Materials

Brass

Renk

Red

Terminal And Terminal Block Type

PUSH-ON TERMINAL

Width Tab

0.250 6.35mm

Contact Plating

Tin

Terminal Type

Standard

Wire Gauge Max

22 AWG

Insulation

Non-Mating End Insulated

RoHS Durumu

ROHS3 Compliant

HTS Kodu

8536.90.40.00

Uzunluk

20.574mm

Depth

17.37mm

Gender

Female

Orientation

Straight

Fabrika Tedarik Süresi

4 Weeks

Montaj Tipi

Free Hanging (In-Line)

Montaj

Free Hanging

Tab Thickness

0.032 0.81mm

ECCN Kodu

EAR99

Terminal

Crimp
