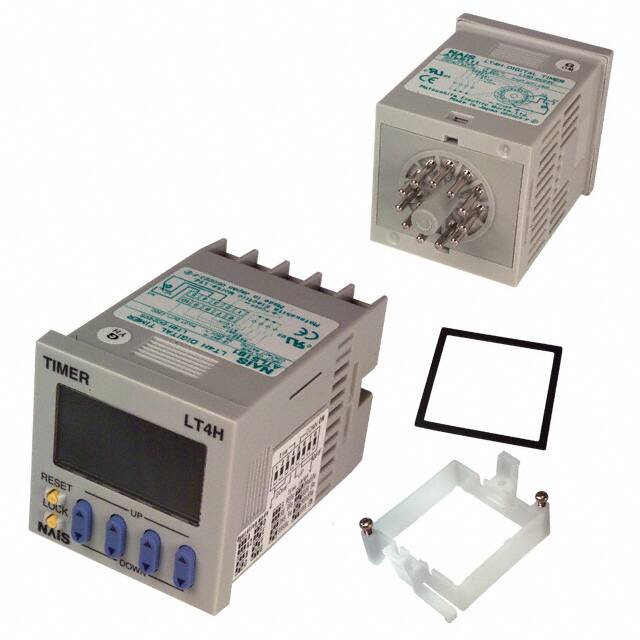

LT4H-DC24V

Teknik Özellikler

Montaj

DIN Rail, Flush, Socket

Throw Configuration

SPDT

Terminal Stili

Plug In, 11 Pin (Octal)

Yükseklik

48mm

Nem Hassasiyeti (MSL)

Not Applicable

Yayın Yılı

2002

Montaj Tipi

Socketable

Nominal Input Voltage

24V

Ratings

IP66

Circuit

SPDT (1 Form C)

Voltage Rated Dc

30V

Fabrika Tedarik Süresi

12 Weeks

Besleme Gerilimi

12V~24VDC

Reach Svhc

No SVHC

Kurşunsuz

Contains Lead

Max Supply Voltage Dc

24V

Min. Çalışma Sıcaklığı

-10°C

Max Voltage Rating Ac

24V

Parça Durumu

Active

Number Of Poles

1

Number Of Contacts

11

Pin Sayısı

11

RoHS Durumu

RoHS Compliant

Timing Initiate Method

Input Voltage, Trigger Signal

Contact Current Rating

5A

Display Type

LCD

Maks. Çalışma Sıcaklığı

55°C

Function

Programmable (Multi-Function)

Voltage Rated Ac

24V

Coil Voltage Dc

24V

Relay Type

Mechanical Relay

Delay Time

0.001 Sec ~ 999.9 Hrs

Min Supply Voltage Dc

12V

Timing Adjustment Method

Up/Down Digit Keys

Operating Supply Voltage

24V

Contact Rating Voltage

5A @ 250VAC

Genişlik

48mm

Terminal

Solder

Seri

LT4H
