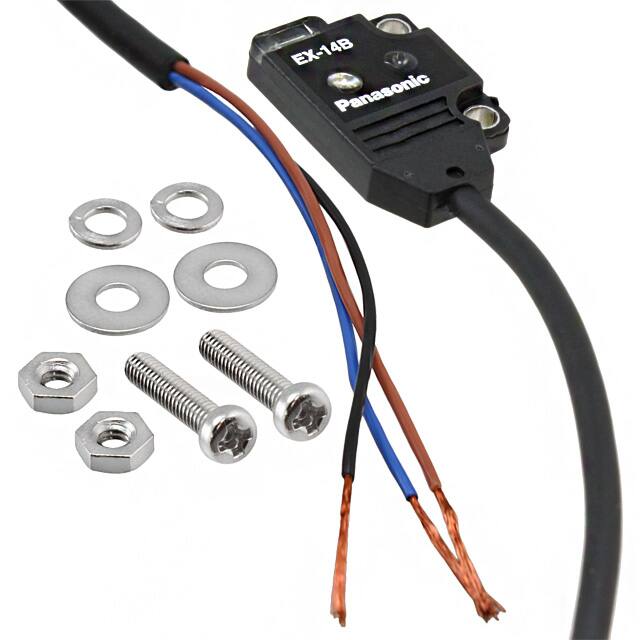

EX-14B

Teknik Özellikler

Montaj

Screw

Seri

EX-10

Besleme Gerilimi

12V~24V

Body Height

19mm

Fabrika Tedarik Süresi

8 Weeks

Output Configuration

NPN - Open Collector

RoHS Durumu

RoHS Compliant

Housing Material

Polybutylene

Additional Feature

IP 67, SHORT-CIRCUIT PROTECTION, REVERSE POLARITY PROTECTION

Min Supply Voltage Dc

12V

Connection Method

Cable

Algılama Mesafesi

0.079 ~ 0.984 (2mm ~ 25mm) ADJ

Çalışma Sıcaklığı

-25°C~55°C

Light Source

Red LED

Repeatability

0.05

Body Length Or Diameter

10mm

Max Supply Voltage Dc

24V

Output Current

50mA

Kablo Uzunluğu

78.74 2m

Turn On Delay Time

500 μs

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Measurement Rangemax

25 mm

Sensing Method

Reflective, Diffuse

Sensorstransducers Type

LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE

Body Breadth

3.5 mm

Ingress Protection

IP67

Measurement Rangemin

2 mm

REACH Uyumluluk Kodu

unknown

Yayın Yılı

2008
