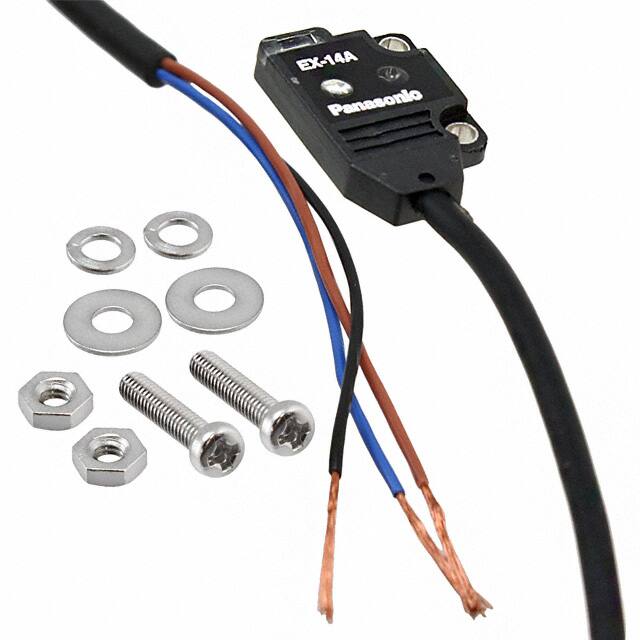

EX-14A

Teknik Özellikler

Montaj

Screw

Seri

EX-10

Besleme Gerilimi

12V~24V

Reach Svhc

Yes

Output Configuration

NPN - Open Collector

Fabrika Tedarik Süresi

8 Weeks

Body Height

20.5mm

Min Supply Voltage Dc

12V

RoHS Durumu

RoHS Compliant

Additional Feature

IP 67, SHORT-CIRCUIT PROTECTION, REVERSE POLARITY PROTECTION

Housing Material

Polybutylene

Algılama Mesafesi

0.079 ~ 0.984 (2mm ~ 25mm) ADJ

Connection Method

Cable

Çalışma Sıcaklığı

-25°C~55°C

Max Supply Voltage Dc

24V

Body Length Or Diameter

13mm

Light Source

Red LED

Repeatability

0.1

Output Current

50mA

Parça Durumu

Active

Measurement Rangemax

25 mm

Max Voltage Rating Dc

24V

Kablo Uzunluğu

78.74 2m

Nem Hassasiyeti (MSL)

1 (Unlimited)

Turn On Delay Time

500 μs

REACH Uyumluluk Kodu

unknown

Measurement Rangemin

2 mm

Yayın Yılı

2005

Sensorstransducers Type

LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE

Sensing Method

Reflective, Diffuse

Ingress Protection

IP67

Body Breadth

3.5 mm
