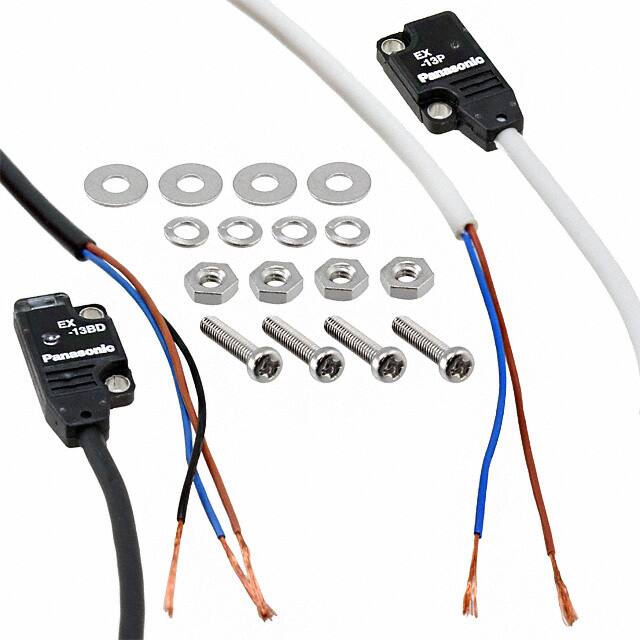

EX-13B

Teknik Özellikler

Kablo Uzunluğu

78.74 2m

Nem Hassasiyeti (MSL)

1 (Unlimited)

Turn On Delay Time

500 μs

Parça Durumu

Active

Measurement Rangemax

500 mm

Sensing Method

Through-Beam

Ingress Protection

IP67

Body Breadth

3.5 mm

REACH Uyumluluk Kodu

unknown

Measurement Rangemin

500 mm

Yayın Yılı

2005

Çalışma Sıcaklığı

-25°C~55°C

Light Source

Red LED

Repeatability

0.05

Body Length Or Diameter

10mm

Max Supply Voltage Dc

24V

Output Current

50mA

RoHS Durumu

RoHS Compliant

Additional Feature

IP 67, SHORT-CIRCUIT PROTECTION, REVERSE POLARITY PROTECTION

Housing Material

Polybutylene

Min Supply Voltage Dc

12V

Algılama Mesafesi

19.685 (500mm)

Connection Method

Cable

Montaj

Screw

Seri

EX-10

Besleme Gerilimi

12V~24V

Body Height

19mm

Fabrika Tedarik Süresi

8 Weeks

Output Configuration

NPN - Open Collector/Dark-ON
