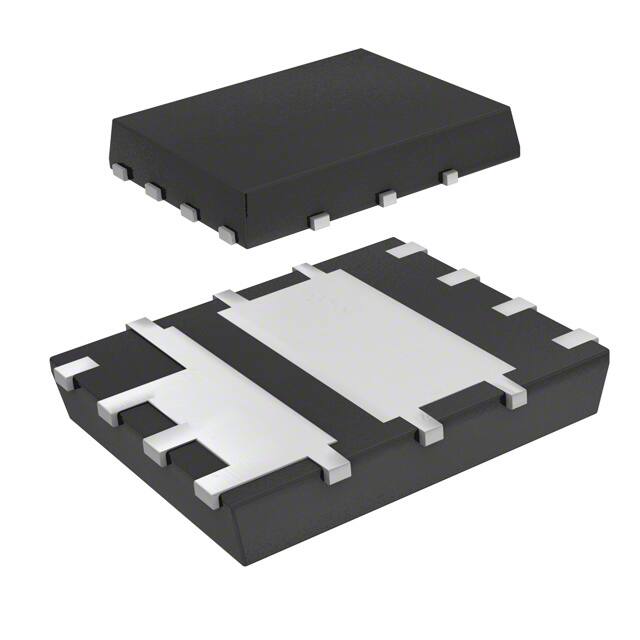

SC8673010L

Teknik Özellikler

Terminal Sayısı

6

Vgsth Max Id

3V @ 4.38mA

ECCN Kodu

EAR99

Drain To Source Breakdown Voltage

30V

Turn On Delay Time

7 ns

Pin Sayısı

8

Montaj

Surface Mount

Case Connection

DRAIN

Rise Time

14ns

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Power Dissipation

34W

Fabrika Tedarik Süresi

12 Weeks

Transistor Application

SWITCHING

Uzunluk

4.9mm

RoHS Durumu

RoHS Compliant

Element Configuration

Dual

Parça Durumu

Active

Fall Time Typ

9 ns

Fet Feature

Logic Level Gate

Current Continuous Drain Id25

16A 40A

Ambalaj

Digi-Reel®

Genişlik

5.9mm

Jesd30 Code

R-PDSO-F6

REACH Uyumluluk Kodu

unknown

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Number Of Elements

2

Turn Off Delay Time

64 ns

Max Power Dissipation

34W

Fet Technology

METAL-OXIDE SEMICONDUCTOR

Transistor Element Material

SILICON

Rds On Max Id Vgs

10m Ω @ 8A, 10V

Drainsource On Resistancemax

0.014Ohm

Çalışma Sıcaklığı

-40°C~85°C TJ

Yükseklik

950μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Mode

DEPLETION MODE

Montaj Tipi

Surface Mount

Drain Currentmax Abs Id

10A

Continuous Drain Current Id

40A

Fet Type

2 N-Channel (Dual) Asymmetrical
