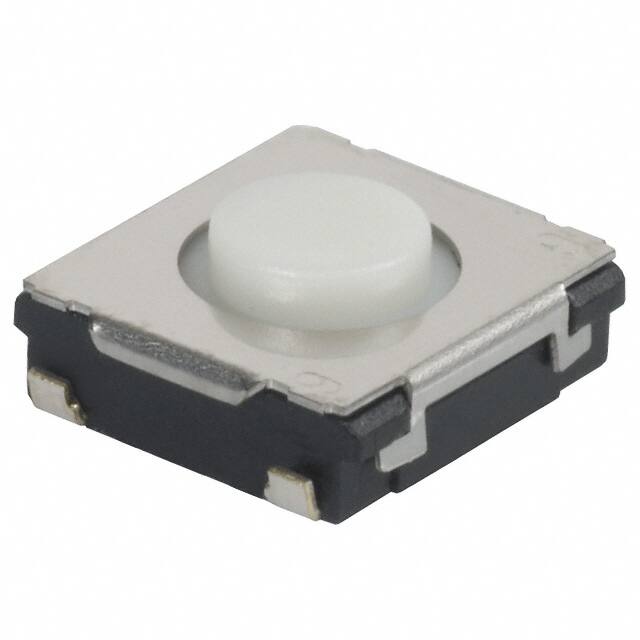

EVQ-Q2K02W

Teknik Özellikler

ECCN Kodu

EAR99

Orientation

Vertical

Contact Dc Max Rating R Load

.02A@15VDC

Illumination

Non-Illuminated

JESD-609 Kodu

e4

Contact Current Rating

20mA

Fabrika Tedarik Süresi

14 Weeks

Electricallife

1000000 Cycle(s)

Yayın Yılı

2010

Contact Currentdcmax

0.02A

Body Breadth

6 mm

Mechanical Life

1,000,000 Cycles

Switch Travel

0.25mm

Contact Rating Voltage

0.02A @ 15VDC

Circuit

SPST-NO

Body Height

1.8mm

Montaj Tipi

Surface Mount

Contact Bounce Timemax

10ms

Outline

6.50mm x 6.00mm

Actuator Type

Standard

HTS Kodu

8536.50.90.40

Terminal Stili

J Lead

Terminal Kaplaması

GOLD/SILVER

Switch Type

KEYPAD SWITCH

Switch Function

Off-Mom

Number Of Switches

1

Actuator Orientation

Top Actuated

Ambalaj

Tape & Reel (TR)

Packing Method

BOX; TAPE AND REEL

Yüzey Montaj

NO

Seri

EVQQ2

Kurşunsuz

Lead Free

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Kurşunsuz Kodu

yes

Actuator Height Off Pcb Vertical

2.50mm

Parça Durumu

Active

Çalışma Sıcaklığı

-40°C~85°C

Operating Force

130gf

Body Length Or Diameter

6.5mm
