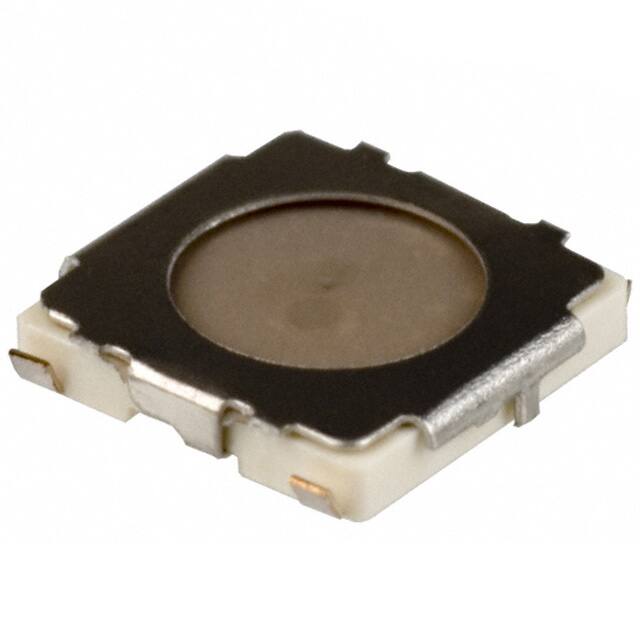

EVQ-PLBA08

Teknik Özellikler

Number Of Switches

1

Actuator Orientation

Top Actuated

Packing Method

BOX; TAPE AND REEL

Ambalaj

Tape & Reel (TR)

Yüzey Montaj

NO

Switch Function

Off-Mom

Kurşunsuz Kodu

yes

Actuator Height Off Pcb Vertical

0.80mm

Çalışma Sıcaklığı

-20°C~70°C

Parça Durumu

Last Time Buy

Operating Force

102gf

Body Length Or Diameter

4.9mm

Seri

EVQPL

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Contact Currentdcmax

0.02A

Yayın Yılı

2010

Electricallife

500000 Cycle(s)

Fabrika Tedarik Süresi

8 Weeks

Body Breadth

4.9 mm

Mechanical Life

500,000 Cycles

Contact Rating Voltage

0.02A @ 15VDC

Switch Travel

0.25mm

Body Height

0.8mm

Circuit

SPST-NO

ECCN Kodu

EAR99

Contact Dc Max Rating R Load

.02A@15VDC

Illumination

Non-Illuminated

JESD-609 Kodu

e4

HTS Kodu

8536.50.90.40

Terminal Stili

J Lead

Switch Type

KEYPAD SWITCH

Terminal Kaplaması

GOLD/SILVER

Montaj Tipi

Surface Mount

Outline

4.90mm x 4.90mm

Contact Bounce Timemax

8ms

Actuator Type

Without
