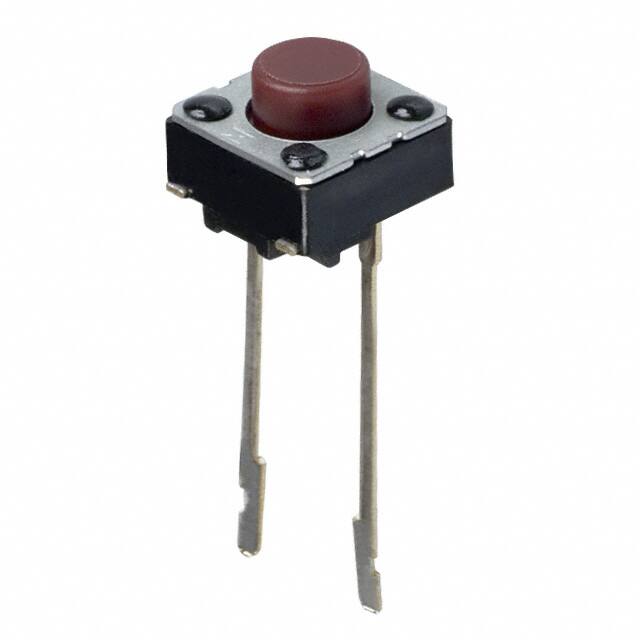

EVQ-22705R

Teknik Özellikler

Çalışma Sıcaklığı

-20°C~70°C

Parça Durumu

Last Time Buy

Operating Force

260gf

Kurşunsuz Kodu

yes

Actuator Length

1.6mm

Actuator Height Off Pcb Vertical

5.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Seri

EVQ2

Kurşunsuz

Lead Free

Actuator Orientation

Top Actuated

Number Of Switches

1

Packing Method

BOX; TAPE AND REEL

Ambalaj

Tape & Box (TB)

Throw Configuration

SPST

Radyasyon Dayanımı

No

Illumination Type

Illuminated, Non-Illuminated

Switch Function

Off-Mom

Max Voltage Rating Dc

15V

HTS Kodu

8536.50.90.40

Reach Svhc

Unknown

Terminal Stili

PC Pin

Akım Değeri

20mA

Switch Type

KEYPAD SWITCH

Terminal Kaplaması

GOLD/SILVER

Voltage Rated Dc

15V

Contact Resistance

50mOhm

Actuator Type

Standard

Montaj Tipi

Through Hole

Kılıf / Paket

Radial

Contact Bounce Timemax

8ms

Outline

6.00mm x 6.00mm

Mechanical Life

50,000 Cycles

Contact Rating Voltage

0.02A @ 15VDC

Switch Travel

0.25mm

Body Height

3.4mm

Circuit

SPST-NO

Contact Current Rating

20mA

Montaj

Through Hole

Terminal

PC Pin
