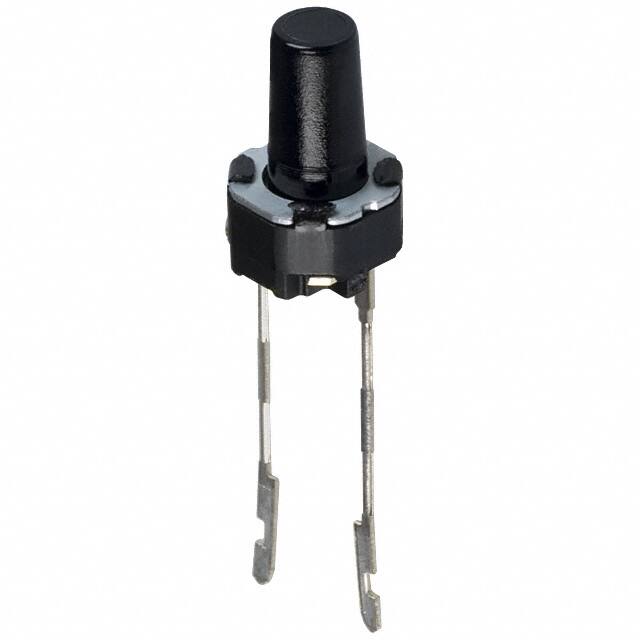

EVQ-11K09K

Teknik Özellikler

Throw Configuration

SPST

Packing Method

BOX; TAPE AND REEL

Ambalaj

Tape & Box (TB)

Actuator Orientation

Top Actuated

Number Of Switches

1

Radyasyon Dayanımı

No

Max Voltage Rating Dc

15V

Switch Function

Off-Mom

Body Length Or Diameter

6mm

Operating Force

130gf

Çalışma Sıcaklığı

-20°C~70°C

Parça Durumu

Last Time Buy

Actuator Height Off Pcb Vertical

9.50mm

Kurşunsuz Kodu

yes

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

EVQ11

Body Height

3.9mm

Circuit

SPST-NO

Contact Rating Voltage

0.02A @ 15VDC

Switch Travel

0.25mm

Body Breadth

6 mm

Mechanical Life

1,000,000 Cycles

Contact Currentdcmax

0.02A

Yayın Yılı

2012

Electricallife

1000000 Cycle(s)

Fabrika Tedarik Süresi

10 Weeks

Terminal

PC Pin

Montaj

Through Hole

JESD-609 Kodu

e4

Illumination

Non-Illuminated

Contact Dc Max Rating R Load

.02A@15VDC

ECCN Kodu

EAR99

Switch Type

KEYPAD SWITCH

Terminal Kaplaması

GOLD/SILVER

Terminal Stili

PC Pin

HTS Kodu

8536.50.90.40

Actuator Type

Standard

Outline

6.00mm x 6.00mm

Kılıf / Paket

Radial
