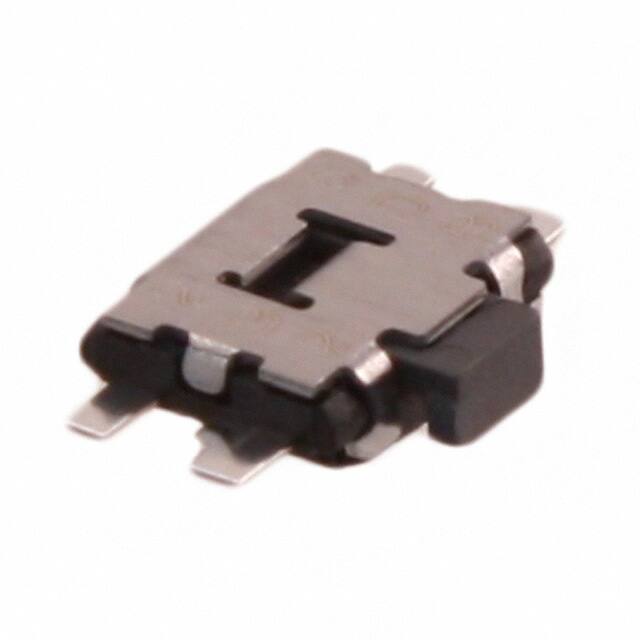

EVP-ANAA1A

Teknik Özellikler

Packing Method

BOX; TAPE AND REEL

Actuator Orientation

Side Actuated

Body Height

1.2mm

Actuator Type

Rectangular Button

Body Length Or Diameter

3.5mm

Body Breadth

2.9 mm

Illumination

Non-Illuminated

Contact Currentdcmax

0.05A

Switch Function

Off-Mom

Çalışma Sıcaklığı

-20°C~70°C

Outline

5.20mm x 2.90mm

Terminal Stili

SMD (SMT) Tab

Ambalaj

Tape & Reel (TR)

Switch Travel

0.20mm

Operating Force

160gf

Contact Bounce Timemax

10ms

Contact Rating Voltage

0.05A @ 12VDC

Seri

EVPAN

Switch Type

KEYPAD SWITCH

Montaj Tipi

Surface Mount, Right Angle

Mechanical Life

100,000 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yüzey Montaj

NO

Circuit

SPST-NO

Yayın Yılı

2015

HTS Kodu

8536.50.90.40

Contact Dc Max Rating R Load

.05A@12VDC

REACH Uyumluluk Kodu

unknown

Parça Durumu

Obsolete

Electricallife

100000 Cycle(s)

ECCN Kodu

EAR99

Mounting Feature

SURFACE MOUNT-RIGHT ANGLE

Number Of Switches

1
