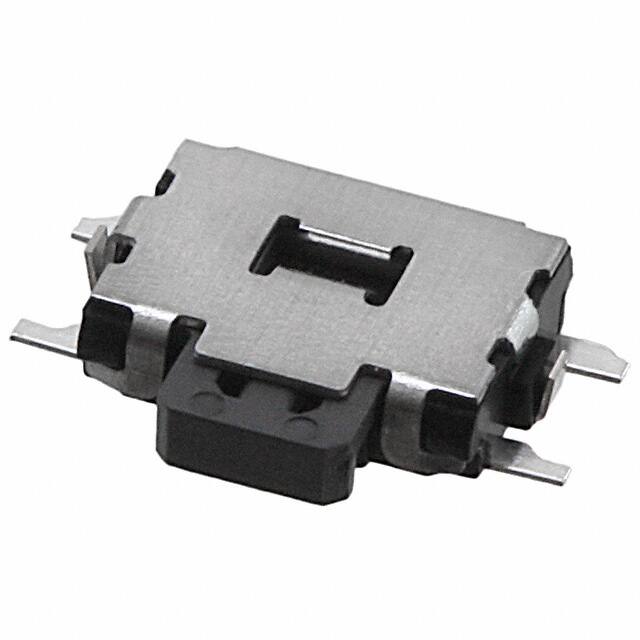

EVP-AJAC1A

Teknik Özellikler

Actuator Length

1mm

Switch Function

Off-Mom-Mom

Çalışma Sıcaklığı

-20°C~70°C

Outline

6.60mm x 3.50mm

Terminal Stili

Gull Wing

Orientation

Right Angle

Ambalaj

Tape & Reel (TR)

Throw Configuration

SPDT, SPST

Yükseklik

700μm

Body Length Or Diameter

4.699mm

Contact Resistance

500mOhm

Montaj

Surface Mount

Actuator Travel

0.127 mm

Body Breadth

1.1938 mm

Illumination

Non-Illuminated

Contact Currentdcmax

0.02A

Actuator Orientation

Side Actuated

Terminal

Gull Wing

Kurşunsuz

Lead Free

Radyasyon Dayanımı

No

Actuator Type

Rectangular Button

Renk

Black

Özellikler

Grounding Pin

ECCN Kodu

EAR99

Max Voltage Rating Dc

15V

HTS Kodu

8536.50.90.65

Dielectric Withstanding Voltage

250VAC V

Insulation Resistance

100000000Ohm

Contact Function

OFF-ON

Contact Dc Max Rating R Load

0.02A@15VDC

Parça Durumu

Obsolete

Electricallife

100000 Cycle(s)

Mechanical Life

100,000 Cycles

Kılıf / Paket

SMD/SMT

Contact Timing

SNAP ACTION

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

50mA

Circuit

SPST-NO x 2

Yayın Yılı

2012

Fabrika Tedarik Süresi

6 Weeks
