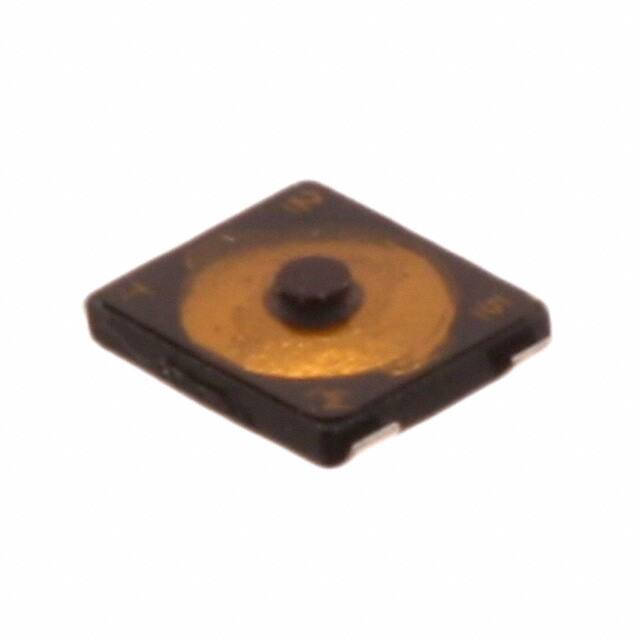

EVP-AF5B70

Teknik Özellikler

Illumination

Non-Illuminated

Contact Currentdcmax

0.02A

Body Length Or Diameter

3mm

Body Breadth

2.6 mm

Outline

3.00mm x 2.60mm

Ambalaj

Tape & Reel (TR)

Terminal Stili

J Lead

Switch Function

Off-Mom

Çalışma Sıcaklığı

-40°C~85°C

Body Height

0.48mm

Actuator Type

Standard

Packing Method

BOX; TAPE AND REEL

Actuator Orientation

Top Actuated

Parça Durumu

Active

Electricallife

100000 Cycle(s)

HTS Kodu

8536.50.90.40

Contact Dc Max Rating R Load

.02A@15VDC

Number Of Switches

1

Actuator Height Off Pcb Vertical

0.70mm

ECCN Kodu

EAR99

Seri

EVPAF

Switch Type

KEYPAD SWITCH

Montaj Tipi

Surface Mount

Switch Travel

0.15mm

RoHS Durumu

RoHS Compliant

Operating Force

347gf

Contact Bounce Timemax

10ms

Contact Rating Voltage

0.02A @ 15VDC

Circuit

SPST-NO

Yayın Yılı

2012

Fabrika Tedarik Süresi

6 Weeks

Mechanical Life

100,000 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yüzey Montaj

NO
