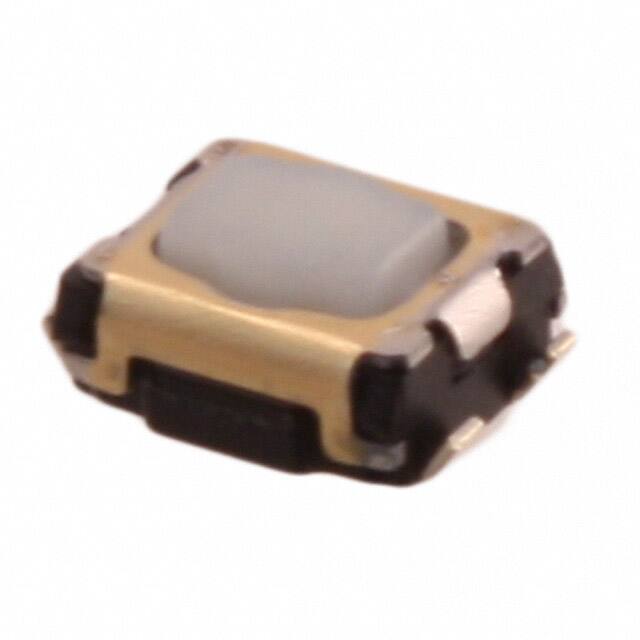

EVP-AA502W

Teknik Özellikler

Contact Bounce Timemax

10ms

Contact Rating Voltage

0.02A @ 15VDC

RoHS Durumu

RoHS Compliant

Switch Travel

0.15mm

Operating Force

240gf

Montaj Tipi

Surface Mount

Terminal Kaplaması

GOLD/SILVER

Seri

EVPAA

Switch Type

KEYPAD SWITCH

Yüzey Montaj

NO

Mechanical Life

200,000 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2012

Fabrika Tedarik Süresi

6 Weeks

Circuit

SPST-NO

Contact Dc Max Rating R Load

.02A@15VDC

HTS Kodu

8536.50.90.40

Electricallife

200000 Cycle(s)

Parça Durumu

Active

ECCN Kodu

EAR99

Actuator Height Off Pcb Vertical

1.70mm

Number Of Switches

1

Özellikler

Grounding Pin

Actuator Orientation

Top Actuated

Packing Method

BOX; TAPE AND REEL

Actuator Type

Standard

Body Height

1.4mm

JESD-609 Kodu

e4

Body Breadth

2.9 mm

Kurşunsuz Kodu

yes

Body Length Or Diameter

3.5mm

Contact Currentdcmax

0.02A

Illumination

Non-Illuminated

Switch Function

Off-Mom

Çalışma Sıcaklığı

-40°C~85°C

Ambalaj

Tape & Reel (TR)

Terminal Stili

J Lead

Outline

3.50mm x 2.90mm
