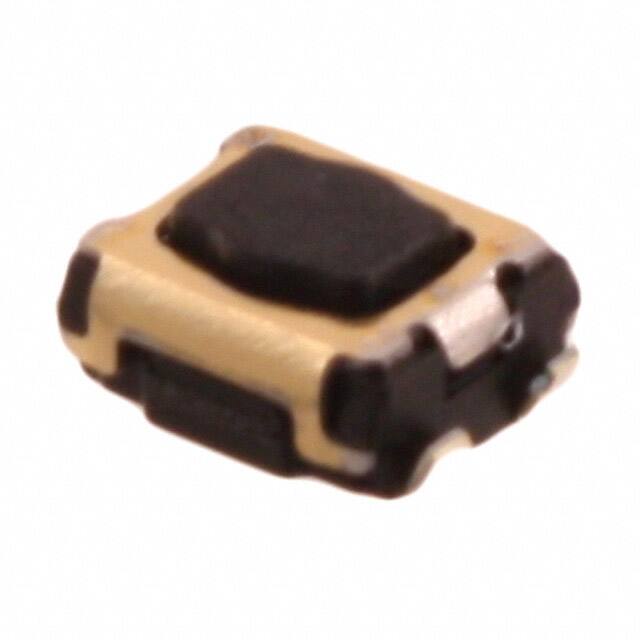

EVP-AA102K

Teknik Özellikler

HTS Kodu

8536.50.90.40

Contact Dc Max Rating R Load

.02A@15VDC

Parça Durumu

Active

Electricallife

1000000 Cycle(s)

ECCN Kodu

EAR99

Number Of Switches

1

Actuator Height Off Pcb Vertical

1.70mm

Switch Travel

0.15mm

RoHS Durumu

RoHS Compliant

Operating Force

100gf

Contact Bounce Timemax

10ms

Contact Rating Voltage

0.02A @ 15VDC

Switch Type

KEYPAD SWITCH

Seri

EVPAA

Montaj Tipi

Surface Mount

Terminal Kaplaması

GOLD/SILVER

Mechanical Life

1,000,000 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yüzey Montaj

NO

Circuit

SPST-NO

Yayın Yılı

2012

Fabrika Tedarik Süresi

6 Weeks

Kurşunsuz Kodu

yes

Body Length Or Diameter

3.5mm

JESD-609 Kodu

e4

Body Breadth

2.9 mm

Illumination

Non-Illuminated

Contact Currentdcmax

0.02A

Switch Function

Off-Mom

Çalışma Sıcaklığı

-40°C~85°C

Outline

3.50mm x 2.90mm

Ambalaj

Tape & Reel (TR)

Terminal Stili

J Lead

Özellikler

Grounding Pin

Packing Method

BOX; TAPE AND REEL

Actuator Orientation

Top Actuated

Body Height

1.4mm

Actuator Type

Standard
