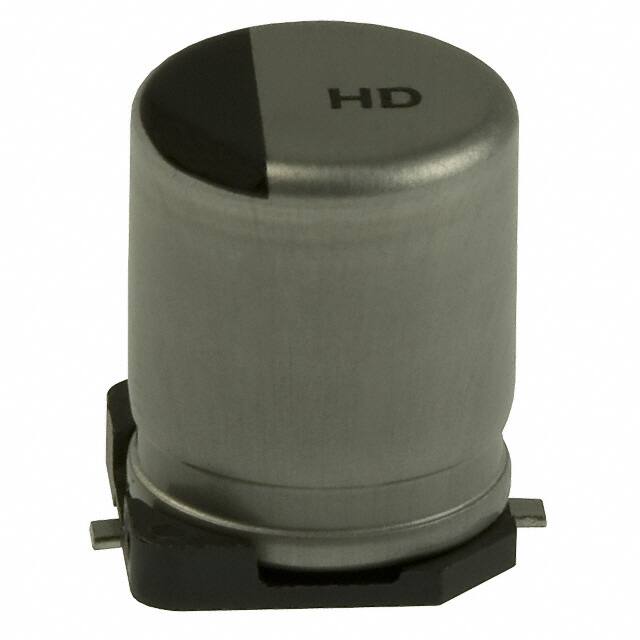

EEV-HD2A220P

Teknik Özellikler

Kılıf / Paket

Radial, Can - SMD

Seri

HD-V

Terminal Shape

ONE SURFACE

Kapasitans

22μF

REACH Uyumluluk Kodu

unknown

Ripple Current High Frequency

119mA @ 10kHz

RoHS Durumu

Non-RoHS Compliant

Empedans

800mOhm

Surface Mount Land Size

0.406Lx0.406W 10.30mmx10.30mm

Applications

General Purpose

Size Code

4141

Maks. Oturma Yüksekliği

0.402 10.20mm

Lifetime Temp

5000 Hrs @ 105°C

Esr

800 mΩ

Parça Durumu

Obsolete

Tan Delta

0.18

Capacitor Type

ALUMINUM ELECTROLYTIC CAPACITOR

Ripple Current

70mA

Ripple Current Low Frequency

70mA @ 120Hz

Montaj Tipi

Surface Mount

Uzunluk

12mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Custom Capabilities

Vibration-Proof Available On Request

Kurşunsuz

Contains Lead

ECCN Kodu

EAR99

Voltage Rated Dc

100V

Boyut / Ölçü

0.394Dia 10.00mm

Genişlik

10.3mm

Leakage Current

0.022mA

Montaj

Surface Mount

Terminal

SMD/SMT

Dielectric Material

Aluminium

Yayın Yılı

2005

Çalışma Sıcaklığı

-40°C~105°C

Ambalaj

Tape & Reel (TR)

Polarization

Polar

Tolerans

±20%

Life Hours

5000 hours

Additional Feature

ESR IS MEASURED AT 100 KHZ

Terminal Sayısı

2
