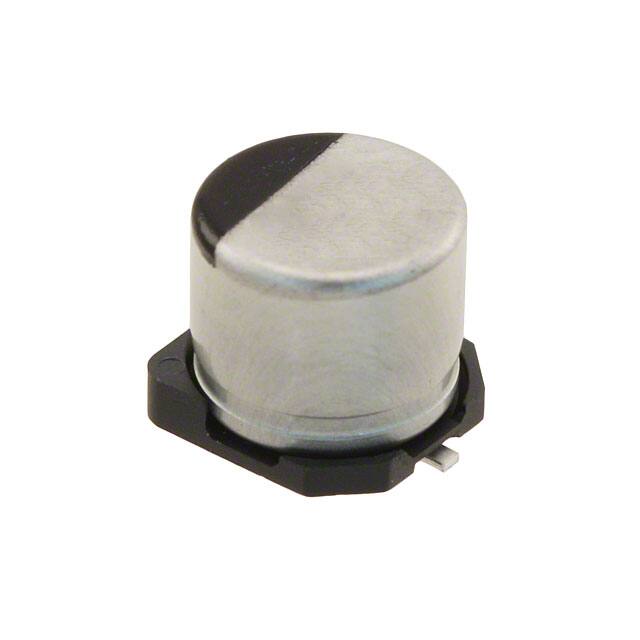

EEH-ZC1V470P

Teknik Özellikler

Seri

ZC

ECCN Kodu

EAR99

Uzunluk

7.8mm

Ambalaj

Tape & Reel (TR)

Tolerans

±20%

Montaj Tipi

Surface Mount

Ripple Current High Frequency

900mA @ 100kHz

Ripple Current Ac

900mA

Lifetime Temp

4000 Hrs @ 125°C

RoHS Durumu

ROHS3 Compliant

Radyasyon Dayanımı

No

Çap

6.3mm

Leakage Current

3μA

Surface Mount Land Size

0.260Lx0.260W 6.60mmx6.60mm

Lead Pitch

1.8mm

Montaj

PCB, Surface Mount

Tan Delta

0.12

Terminal Sayısı

2

Applications

Automotive

Maks. Oturma Yüksekliği

0.240 6.10mm

Esr Equivalent Series Resistance

60mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2013

Material

Polymer

Size Code

2626

Ripple Current

900mA

Lead Diameter

650 μm

Yükseklik

5.8mm

Terminal Shape

FLAT

Terminal

SMD/SMT

Life Hours

4000 hours

Kapasitans

47μF

Genişlik

6.6mm

Tip

Hybrid

Voltage Rated Dc

35V

Polarity

POLARIZED

Fabrika Tedarik Süresi

12 Weeks

Gerilim

35V

Parça Durumu

Active

Ripple Current Low Frequency

135mA @ 100Hz
