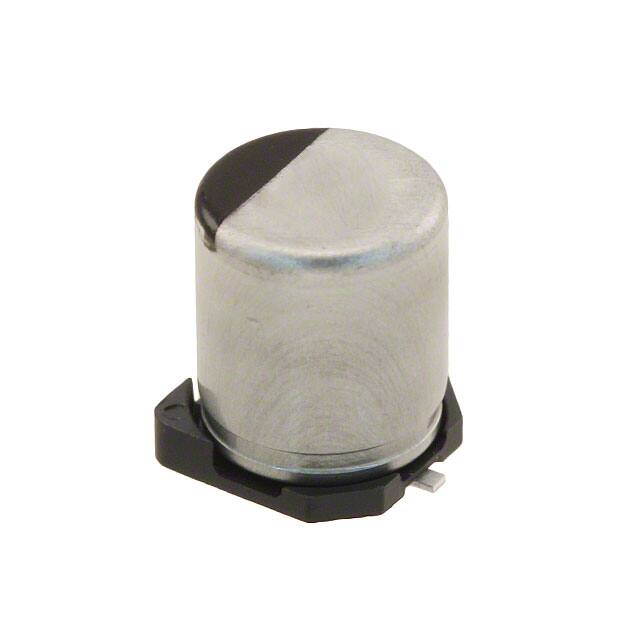

EEH-ZC1V220R

Teknik Özellikler

Montaj

PCB, Surface Mount

Tan Delta

0.12

Applications

Automotive

Terminal Sayısı

2

Esr Equivalent Series Resistance

100mOhm

Maks. Oturma Yüksekliği

0.240 6.10mm

Yayın Yılı

2013

Material

Polymer

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çap

5mm

Leakage Current

3μA

Radyasyon Dayanımı

No

Lead Pitch

1.5mm

Surface Mount Land Size

0.209Lx0.209W 5.30mmx5.30mm

Ripple Current Ac

550mA

Ripple Current High Frequency

550mA @ 100kHz

Montaj Tipi

Surface Mount

Lifetime Temp

4000 Hrs @ 125°C

RoHS Durumu

ROHS3 Compliant

Seri

ZC

ECCN Kodu

EAR99

Ambalaj

Tape & Reel (TR)

Tolerans

±20%

Kurşunsuz

Lead Free

Boyut / Ölçü

0.197Dia 5.00mm

Ratings

AEC-Q200

Çalışma Sıcaklığı

-55°C~125°C

Reach Svhc

No SVHC

Additional Feature

ESR IS MEASURED AT 100 KHZ

Voltage Rated Dc

35V

Polarity

POLARIZED

Tip

Hybrid

Ripple Current Low Frequency

55mA @ 100Hz

Parça Durumu

Active

Gerilim

35V

Fabrika Tedarik Süresi

12 Weeks

Packing Method

TR, EMBOSSED, 15 INCH

Kılıf / Paket

Radial, Can - SMD

Terminal

SMD/SMT

Terminal Shape

FLAT
