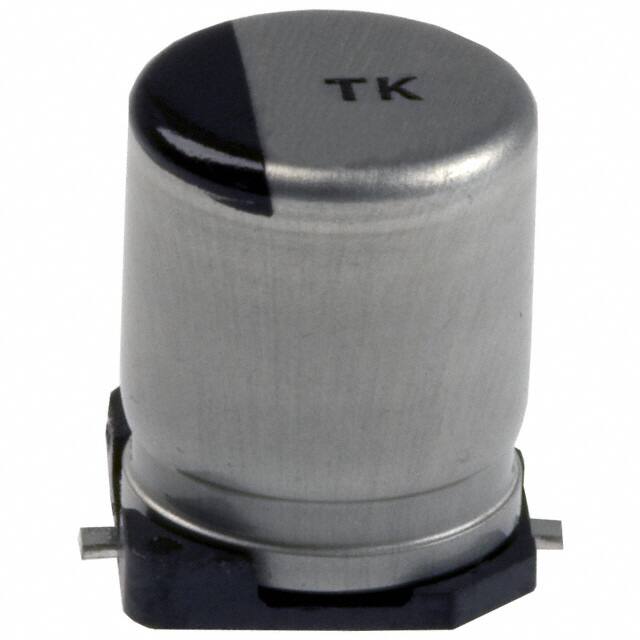

EEE-TK2A101AM

Teknik Özellikler

Seri

TK

Reference Standard

AEC-Q200

ECCN Kodu

EAR99

Tolerans

±20%

Dielectric Material

ALUMINUM

Montaj Tipi

Surface Mount

Ripple Current High Frequency

350mA @ 100kHz

Lifetime Temp

2000 Hrs @ 125°C

RoHS Durumu

RoHS Compliant

Montaj

Surface Mount

Esr Equivalent Series Resistance

300mOhm @ 100kHz

Maks. Oturma Yüksekliği

0.650 16.50mm

Lead Diameter

1.2 mm

Ripple Current

350mA

Capacitor Type

ALUMINUM ELECTROLYTIC CAPACITOR

Dissipation Factor

0.1 %

Terminal

SMD/SMT

Life Hours

2000 hours

Gerilim

100V

Fabrika Tedarik Süresi

12 Weeks

Packing Method

TR, 13 INCH

Reach Svhc

No SVHC

Ambalaj

Tape & Reel (TR)

Uzunluk

19mm

Ripple Current Ac

350mA

Polarization

Polar

Leakage Current

10μA

Çap

16mm

Lead Pitch

6.7mm

Surface Mount Land Size

0.669Lx0.669W 17.00mmx17.00mm

Kurşunsuz Kodu

yes

Terminal Kaplaması

TIN/TIN BISMUTH

Tan Delta

0.1

Applications

General Purpose

Terminal Sayısı

2

Yayın Yılı

2012

Nem Hassasiyeti (MSL)

1 (Unlimited)

Size Code

6767

Pin Sayısı

16

Yükseklik

16.5mm
