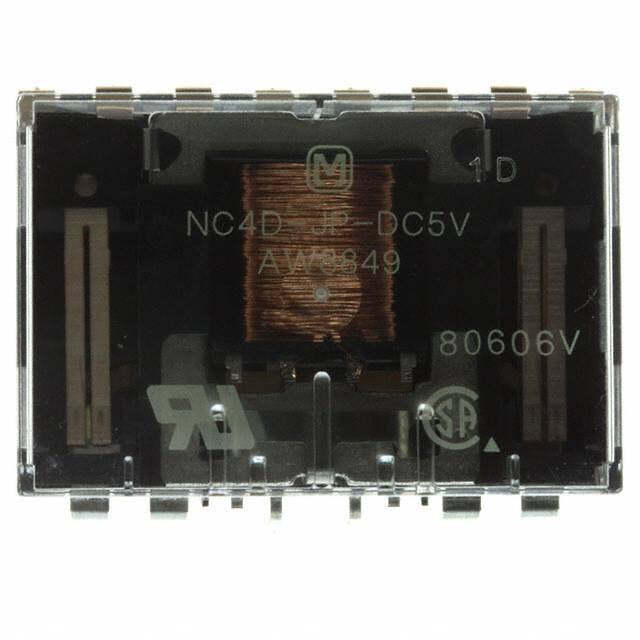

NC4D-JP-DC5V

Teknik Özellikler

Ambalaj

Tube

Contact Ac Max Rating R Load

4A@250VAC

Kurşunsuz Kodu

yes

Coil Power

720mW

Throw Configuration

4PDT

Kontak Formu

4PDT (4 Form C)

Release Time

10ms

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-40°C~55°C

Genişlik

25.4mm

Reference Standard

CSA; UL

Coil Current

144mA

Power Rating

720mW

RoHS Durumu

RoHS Compliant

Yükseklik

10.9mm

Power Consumption

360mW

Voltage Rated Ac

250V

Fabrika Tedarik Süresi

10 Weeks

Coil Voltage Dc

5V

Must Operate Voltage

4VDC

Contact Materials

Silver Nickel (AgNi)

Switching Voltage

250VAC -Max

Montaj Tipi

Through Hole

Coil Voltage

5VDC

Yayın Yılı

2000

Physical Dimension

38.1mm x 25.4mm x 10.9mm

Must Release Voltage

0.5VDC

Coilinput Supply Type

DC

Max Current Rating

4A

Max Voltage Rating Ac

250V

Relay Action

MOMENTARY

Packing Method

BOX

Uzunluk

38.1mm

ECCN Kodu

EAR99

Coil Type

Non Latching

Weight

18g

Pin Sayısı

14

Terminal Stili

PC Pin

Kurşunsuz

Lead Free

Coilresistance

34.7Ohm
