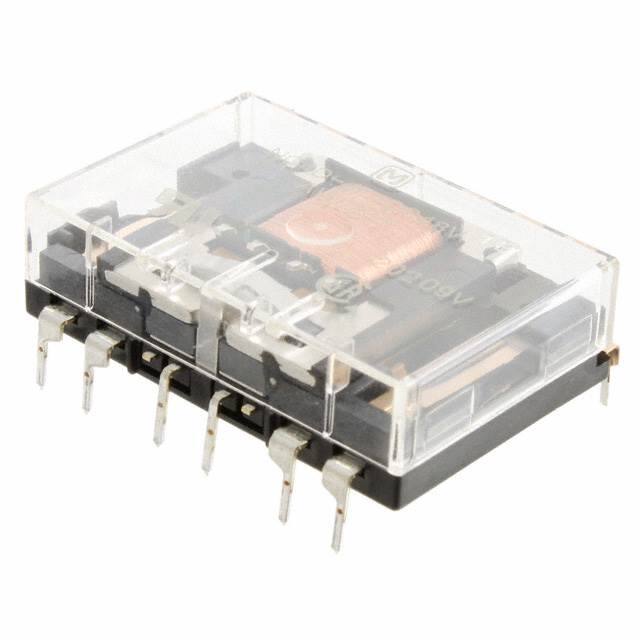

NC4D-JP-DC48V

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Yükseklik

10.9mm

Fabrika Tedarik Süresi

10 Weeks

Voltage Rated Ac

250V

Power Consumption

360mW

Coil Voltage Dc

48V

Montaj Tipi

Through Hole

Switching Voltage

250VAC -Max

Contact Materials

Silver Nickel (AgNi)

Must Operate Voltage

38.4VDC

Yayın Yılı

2010

Coil Voltage

48VDC

Physical Dimension

38.1mm x 25.4mm x 10.9mm

Coilinput Supply Type

DC

Must Release Voltage

4.8VDC

Kurşunsuz Kodu

yes

Contact Ac Max Rating R Load

4A@250VAC

Ambalaj

Tube

Throw Configuration

4PDT

Coil Power

720mW

Kontak Formu

4PDT (4 Form C)

Release Time

10ms

Reach Svhc

No SVHC

Genişlik

25.4mm

Çalışma Sıcaklığı

-40°C~55°C

Power Rating

720mW

Reference Standard

CSA; UL

Coil Current

15mA

Pin Sayısı

14

Terminal Stili

PC Pin

Coilresistance

3.2kOhm

Kurşunsuz

Lead Free

Seri

NC

Nem Hassasiyeti (MSL)

Not Applicable

Operate Time

20ms

Relay Type

General Purpose

Contactoutput Supply Type

AC

Contact Rating Current

5A

Max Voltage Rating Dc

30V

Electricallife

100000 Cycle(s)
