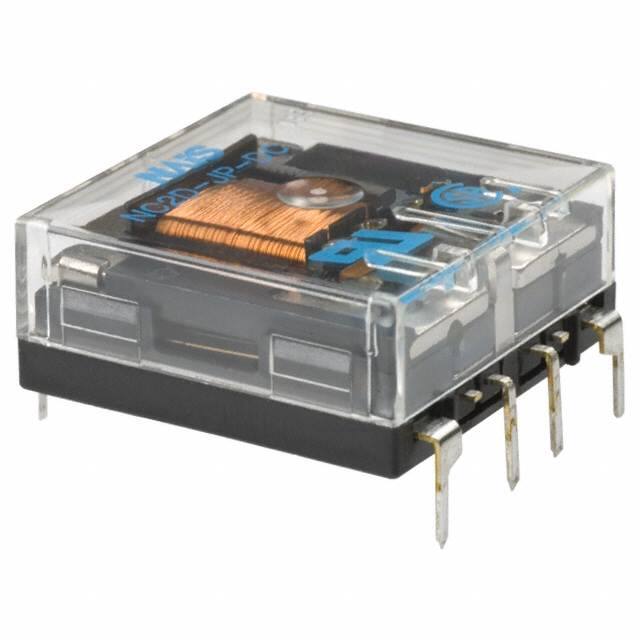

NC2D-JP-DC6V

Teknik Özellikler

Contactoutput Supply Type

AC

Physical Dimension

25.4mm x 25.4mm x 10.9mm

Depth

25.4mm

Coilinput Supply Type

DC

Terminal

PC Pin

Parça Durumu

Active

Electricallife

100000 Cycle(s)

Max Voltage Rating Dc

30V

Must Release Voltage

0.6VDC

Montaj

Through Hole

Seri

NC

Yayın Yılı

2000

Coil Voltage

6VDC

Operate Time

20ms

Relay Type

General Purpose

Terminal Stili

PC Pin

Coil Voltage Dc

6V

Switching Voltage

250VAC -Max

Coilresistance

100Ohm

Montaj Tipi

Through Hole

Contact Materials

Silver Nickel (AgNi)

Must Operate Voltage

4.8VDC

Kurşunsuz

Lead Free

Pin Sayısı

8

RoHS Durumu

RoHS Compliant

Fabrika Tedarik Süresi

10 Weeks

Voltage Rated Ac

250V

Power Consumption

360mW

Coil Type

Non Latching

Contact Currentacmax

5A

Çalışma Sıcaklığı

-40°C~70°C

ECCN Kodu

EAR99

Weight

16g

Coil Current

60mA

Reference Standard

CSA; UL

Body Height

10.9mm

Release Time

10ms

Uzunluk

25.4mm

Packing Method

BOX

Throw Configuration

DPDT
