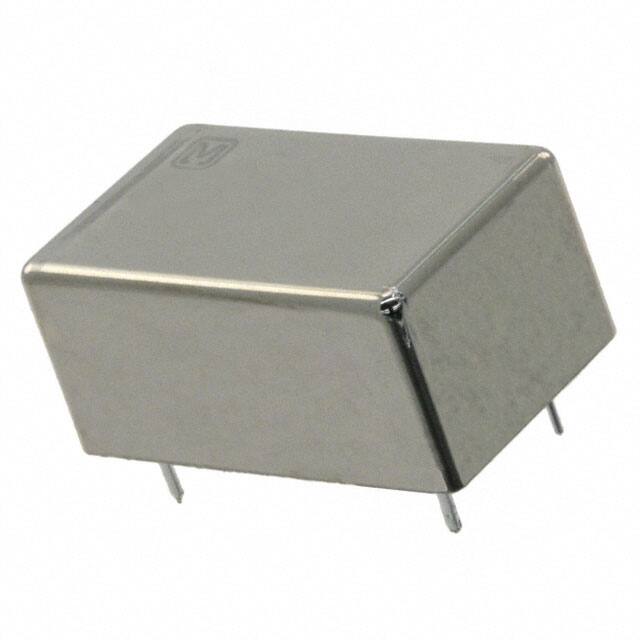

ARX1106

Teknik Özellikler

Seri

ARX

Operate Time

10ms

Release Time

6ms

Contact Currentdcmax

0.5A

Physical Dimension

20.5mm x 12.4mm x 9.4mm

Coilinput Supply Type

DC

RoHS Durumu

RoHS Compliant

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-40°C~70°C

Kontak Formu

SPDT (1 Form C)

Pin Sayısı

6

Must Operate Voltage

4.5VDC

Operating Frequency Max

2500MHz

Coilresistance

180Ohm

Coil Current

33.3mA

Coil Type

Latching, Single Coil

Vswr

1.2

Terminal Stili

PC Pin

Relay Type

RF

Max Voltage Rating Dc

30V

ECCN Kodu

EAR99

Parça Durumu

Obsolete

Insertion Loss Db

0.2 dB

Contactoutput Supply Type

DC

Throw Configuration

SPDT

Switching Time

20 ms

Coil Voltage

6VDC

Body Breadth

12.4 mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Characteristic Impedance

50Ohm

Input Powermax Cw

20W

Power Consumption

200mW

Electricallife

100000 Cycle(s)

Montaj

Through Hole

Contact Materials

Gold Plating

Packing Method

BOX

Contact Dc Max Rating R Load

.5A@30VDC

Max Current Rating

500mA

Body Length Or Diameter

20.5mm

Coil Voltage Dc

6V
