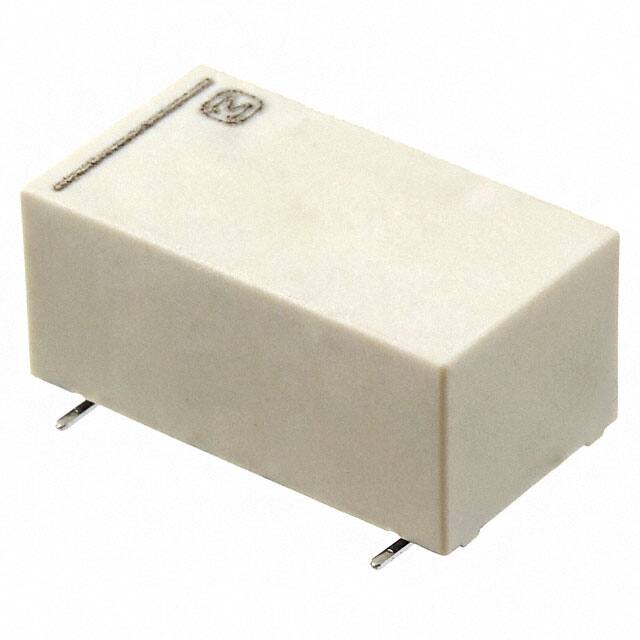

ARE10A09

Teknik Özellikler

Contact Materials

Gold Plating

Seri

ARE

Electricallife

300000 Cycle(s)

Isolationmax

30 dB

Dielectric Strength Between Coil And Contacts

1000 Vrms

Empedans

50Ohm

Insertion Loss Db

0.7 dB

Test Voltage

500V

HTS Kodu

8536.41.00.20

Terminal

SMD/SMT

Coilinput Supply Type

DC

Terminal Stili

Gull Wing

Release Time

5ms

Operate Time

10ms

Contact Currentdcmax

0.5A

Coil Type

Non Latching

Switching Current

1A

Switching Voltage

30VDC -Max

Yayın Yılı

2006

Kontak Formu

SPDT (1 Form C)

Contact Dc Max Rating R Load

.5A@30VDC

Fabrika Tedarik Süresi

12 Weeks

Throw Configuration

SPDT

Weight

5g

Body Breadth

11.2 mm

Contact Resistance

100mOhm

Coil Voltage

9VDC

Input Powermax Cw

10W

Frekans

2.6GHz

Coil Voltage Dc

9V

Relay Action

MOMENTARY

Nem Hassasiyeti (MSL)

4 (72 Hours)

Max Current Rating

500mA

RoHS Durumu

RoHS Compliant

Relay Type

RF RELAY

Terminal Sayısı

9

Input Switching Control Type

Random

Max Voltage Rating Dc

30V

Switching Time

15 ms

Montaj Tipi

Surface Mount
