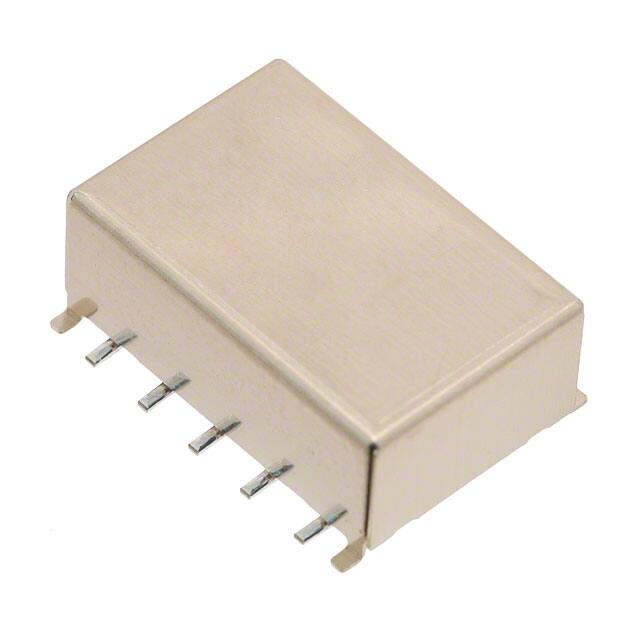

ARA200A03X

Teknik Özellikler

Release Time

4 ms

Input Powermax Cw

3W

Pin Sayısı

10

Vswr

1.2

Throw Configuration

DPDT

Relay Form

2 FORM C

ECCN Kodu

EAR99

Body Breadth

9.7 mm

Terminal Sayısı

10

Max Current Rating

1A

Parça Durumu

Active

Fabrika Tedarik Süresi

10 Weeks

Kurşunsuz

Lead Free

Physical Dimension

14.7mm x 9.7mm x 5.9mm

Terminal

SMD/SMT

Min. Çalışma Sıcaklığı

-40°C

Max Voltage Rating Dc

30V

Switching Time

4 ms

Dielectric Strength Between Open Contacts

750 Vrms

Packing Method

TAPE AND REEL

Input Switching Control Type

Random

Contact Resistance

75mOhm

REACH Uyumluluk Kodu

unknown

Frekans

1GHz

Maks. Çalışma Sıcaklığı

85°C

Contact Dc Max Rating R Load

1A@30VDC

Coil Voltage Dc

3V

Isolationmax

30 dB

Relay Type

RF RELAY

Contact Materials

Gold, Silver

RoHS Durumu

RoHS Compliant

Coil Voltage

3V

Coil Current

46.7mA

Body Length Or Diameter

14.7mm

Operate Time

4 ms

Contactoutput Supply Type

DC

HTS Kodu

8536.41.00.20

Empedans

50Ohm

Insertion Loss Db

0.3 dB

Contact Current Rating

1A
