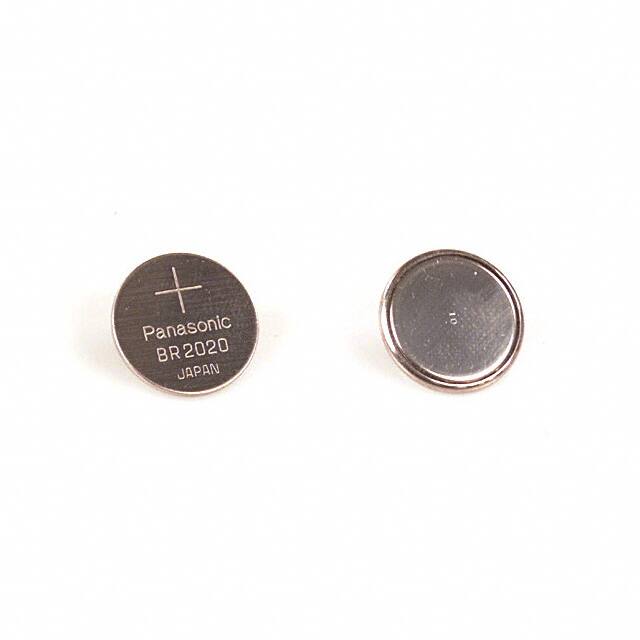

BR2020

Teknik Özellikler

Battery Cell Size

Coin 20.0mm

Number Of Elements

2

Capacity

100mAh

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

Not Applicable

Weight

2g

Nonrep Pk Forward Currentmax

200A

Pin Sayısı

3

Yayın Yılı

2005

Discharge Rate

30μA

Parça Durumu

Obsolete

Terminal Stili

Requires Holder

Configuration

COMMON CATHODE, 2 ELEMENTS

Yüzey Montaj

NO

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

RoHS Durumu

Non-RoHS Compliant

Kurşunsuz

Lead Free

Qualification Status

Not Qualified

Operating Temperature Min

-65°C

Jesd30 Code

R-PSFM-T3

Voltage Rated Dc

3V

Battery Chemistry

Lithium Poly-Carbon Monoflouride

Rep Pk Reverse Voltagemax

200V

Output Currentmax

20A

Jedec95 Code

TO-220AB

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Additional Feature

FREE WHEELING DIODE, LOW POWER LOSS

Seri

BR2020

Terminal Formu

THROUGH-HOLE

Boyut / Ölçü

0.79Dia x 0.08 H 20.0mmx2.0mm

Number Of Phases

1

REACH Uyumluluk Kodu

not_compliant

HTS Kodu

8541.10.00.80

Operating Temperature Max

175°C

Diode Type

RECTIFIER DIODE

Terminal Sayısı

3

Applications

EFFICIENCY

Diode Element Material

SILICON

Yükseklik

2.032mm
