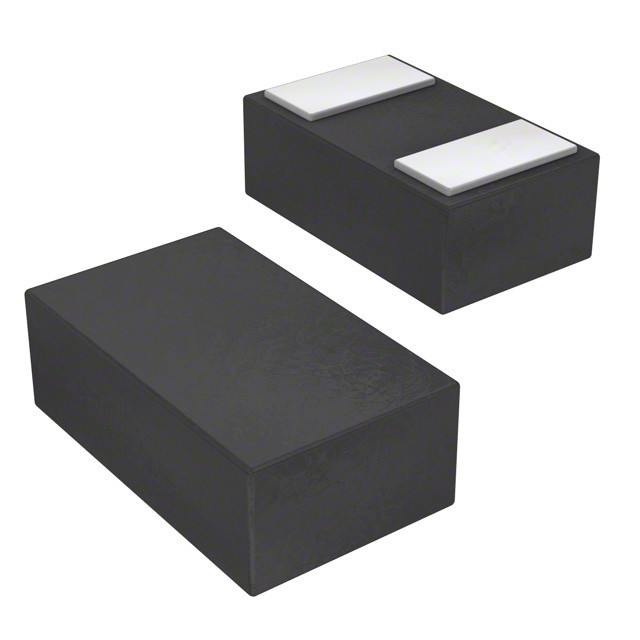

SZESD8472MUT5G

Teknik Özellikler

Tip

Zener

Yayın Yılı

2012

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Surface Mount

Element Configuration

Single

Montaj

Surface Mount

Terminal Sayısı

2

Number Of Channels

1

Power Dissipation Max

0.3W

Clamping Voltage

14V

Kapasitans

200FF

Breakdown Voltage V

7V

Çalışma Sıcaklığı

-55°C~150°C TJ

Yükseklik

330μm

Capacitance Frequency

0.2pF @ 1MHz

Reverse Standoff Voltage

5.3V

Number Of Elements

1

Kurşunsuz

Lead Free

Ambalaj

Tape & Reel (TR)

Parça Durumu

Active

Peak Pulse Current

3A

Additional Feature

EXCELLENT CLAMPING CAPABILITY, LOW CAPACITANCE

Terminal Pozisyonu

BOTTOM

Working Voltage

5.3V

Voltage Reverse Standoff Typ

5.3V Max

Fabrika Tedarik Süresi

4 Weeks

Direction

Bidirectional

RoHS Durumu

ROHS3 Compliant

Max Junction Temperature Tj

150°C

Lifecycle Status

ACTIVE (Last Updated: 1 week ago)

Power Line Protection

No

Diode Element Material

SILICON

Pin Sayısı

2

Terminal Kaplaması

Nickel/Palladium/Gold (Ni/Pd/Au)

Applications

Automotive, RF Antenna

Seri

Automotive, AEC-Q101

Current Peak Pulse101000s

3A 8/20μs

Kurşunsuz Kodu

yes

Kılıf / Paket

0201 (0603 Metric)

JESD-609 Kodu

e4
