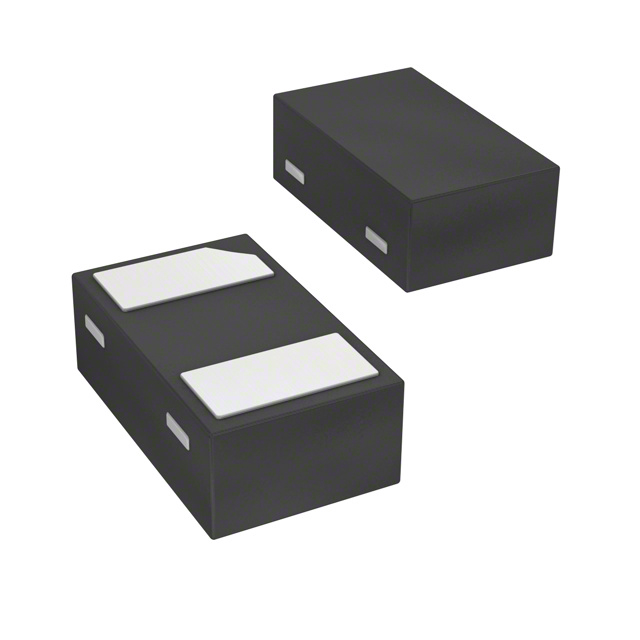

SZESD7451N2T5G

Teknik Özellikler

Kurşunsuz Kodu

yes

Bidirectional Channels

1

Kılıf / Paket

2-XDFN

Applications

Automotive, RF Antenna

Operating Supply Voltage

3.3V

Seri

Automotive, AEC-Q101

Power Line Protection

No

ECCN Kodu

EAR99

Pin Sayısı

2

Terminal Kaplaması

Nickel/Gold/Palladium (Ni/Au/Pd)

Diode Element Material

SILICON

Direction

Bidirectional

RoHS Durumu

ROHS3 Compliant

Voltage Breakdown Min

6V Typ

Terminal Pozisyonu

BOTTOM

Additional Feature

EXCELLENT CLAMPING CAPABILITY, ULTRA LOW CAPACITANCE

Voltage Reverse Standoff Typ

3.3V Max

Fabrika Tedarik Süresi

13 Weeks

Working Voltage

3.3V

Kurşunsuz

Lead Free

Capacitance Frequency

0.25pF @ 1MHz

Reverse Standoff Voltage

3.3V

Number Of Elements

1

Ambalaj

Tape & Reel (TR)

Parça Durumu

Active

Kapasitans

350FF

Clamping Voltage

13V

Montaj

Surface Mount

Terminal Sayısı

2

Breakdown Voltage V

6V

Çalışma Sıcaklığı

-55°C~150°C TJ

Tip

Zener

Montaj Tipi

Surface Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2014

Element Configuration

Single
