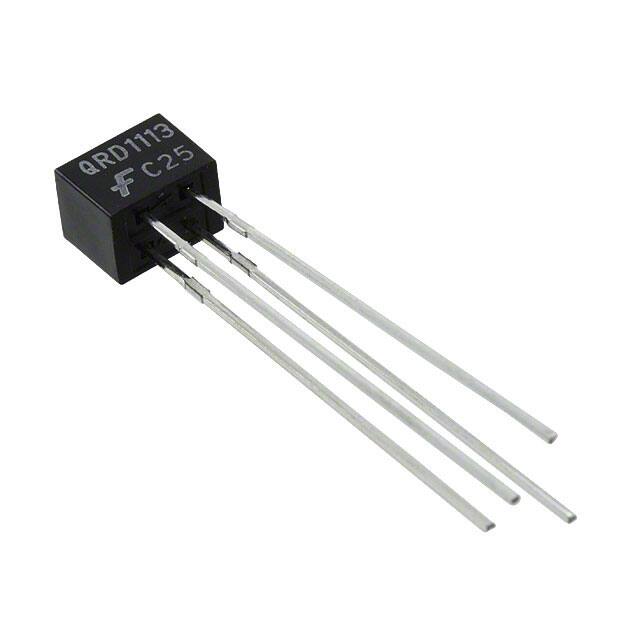

QRD1113

Teknik Özellikler

Collectoremitter Breakdown Voltage

30V

Fall Time Typ

50 μs

Montaj

Through Hole

Reverse Voltage Dc

5V

Weight

0g

RoHS Durumu

ROHS3 Compliant

Rise Time

10μs

Kurşunsuz

Lead Free

Radyasyon Dayanımı

No

Termination Type

SOLDER

Number Of Channels

1

Kılıf / Paket

Radial - 4 Leads

Ambalaj

Bulk

Response Time

10μs, 50μs

Forward Current

50mA

Reach Svhc

No SVHC

Çıkış Tipi

Phototransistor

Input Current

20mA

Pin Sayısı

4

Sensing Method

Reflective

Voltage Rated Dc

30V

Fabrika Tedarik Süresi

22 Weeks

JESD-609 Kodu

e3

Forward Voltage

1.7V

Lifecycle Status

ACTIVE (Last Updated: 1 week ago)

Parça Durumu

Active

Operating Supply Voltage

1.7V

Housing

PLASTIC

Sensorstransducers Type

LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE

Çalışma Sıcaklığı

-40°C~85°C

Max Collector Current

300μA

ECCN Kodu

EAR99

Contact Plating

Tin

Algılama Mesafesi

0.050 (1.27mm)

Power Dissipation

100mW

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Collector Emitter Voltage Vceo

30V

Output Voltage

30V

Reverse Breakdown Voltage

5V
