NTMFSC0D8N04XMTWG

Teknik Özellikler

Seri

DUAL COOL®

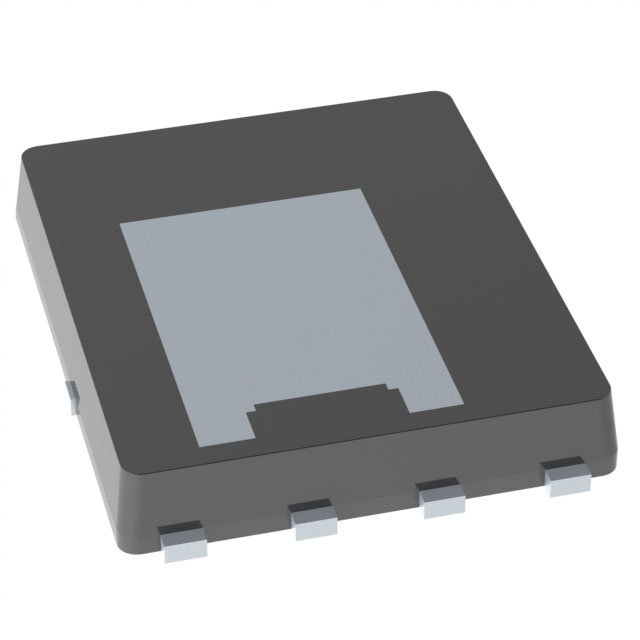

Kılıf / Paket

8-PowerVDFN

Power Dissipation Max

3.8W (Ta), 135W (Tc)

Gate Charge Qg Max Vgs

72 nC @ 10 V

Drain To Source Voltage Vdss

40 V

Ambalaj

Tape & Reel (TR)

Çalışma Sıcaklığı

-55°C ~ 175°C (TJ)

Tedarikçi Cihaz Paketi

8-DFN (5x6.15)

Drive Voltage Max Rds On Min Rds On

10V

Vgs Max

±20V

Parça Durumu

Active

Vgsth Max Id

3.5V @ 180µA

Fet Type

N-Channel

Input Capacitance Ciss Max Vds

4651 pF @ 20 V

Current Continuous Drain Id25

310A (Tc)

Rds On Max Id Vgs

0.78mOhm @ 50A, 10V

Montaj Tipi

Surface Mount
