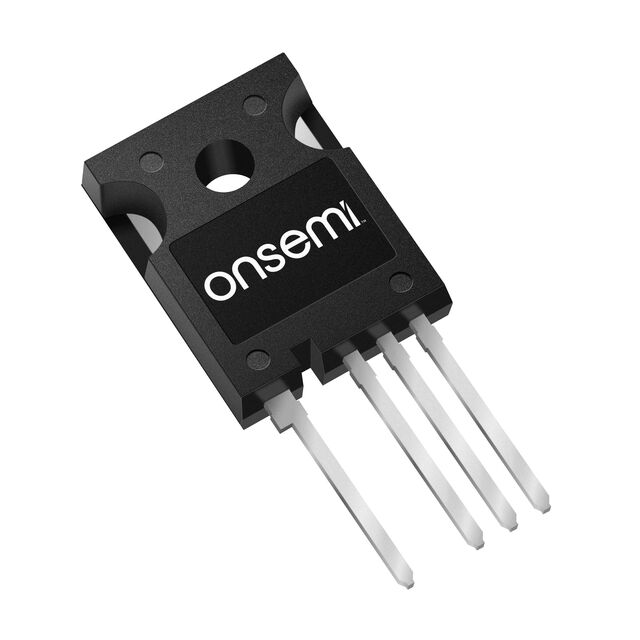

NTH4L013N120M3S

Teknik Özellikler

Rds On Max Id Vgs

20mOhm @ 75A, 18V

Parça Durumu

Active

Current Continuous Drain Id25

151A (Tc)

Input Capacitance Ciss Max Vds

5813 pF @ 800 V

Çalışma Sıcaklığı

-55°C ~ 175°C (TJ)

Vgs Max

+22V, -10V

Power Dissipation Max

682W (Tc)

Fet Type

N-Channel

Tedarikçi Cihaz Paketi

TO-247-4

Vgsth Max Id

4.4V @ 37mA

Drive Voltage Max Rds On Min Rds On

18V

Montaj Tipi

Through Hole

Drain To Source Voltage Vdss

1200 V

Gate Charge Qg Max Vgs

254 nC @ 18 V

Ambalaj

Tube

Kılıf / Paket

TO-247-4
