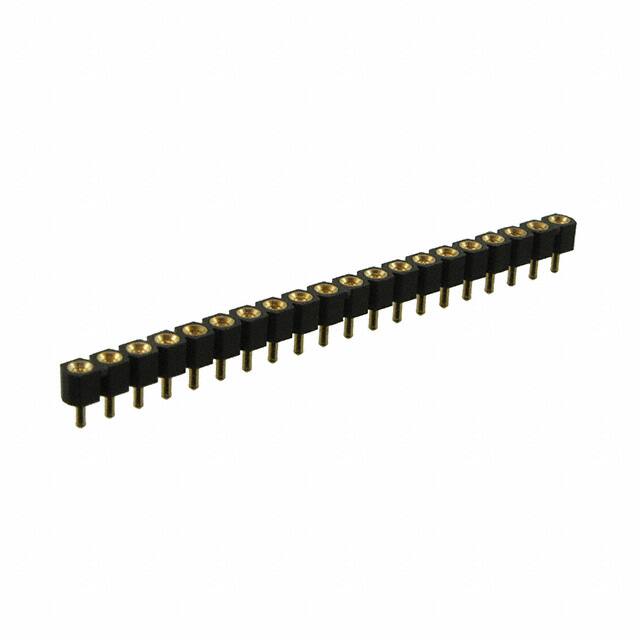

XR2C-2005

Teknik Özellikler

Number Of Positions Or Pins Grid

20 (1 x 20)

Housing Material

Polybutylene Terephthalate (PBT), Glass Filled

Number Of Contacts

20

Terminal

Solder

Yayın Yılı

2002

Contact Material Post

Beryllium Copper

Pitch Mating

0.100 2.54mm

Parça Durumu

Active

Contact Finish Mating

Gold

Max Current Rating

1A

Max Voltage Rating Ac

300V

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole

Gender

Female

HTS Kodu

8536.69.40.40

Contact Finish Thickness Post

30.0μin 0.76μm

Özellikler

Closed Frame

Radyasyon Dayanımı

No

Tip

SIP

Fabrika Tedarik Süresi

12 Weeks

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

30.0μin 0.76μm

Seri

XR2

Contact Resistance

20mOhm

Ambalaj

Bulk

Contact Material Mating

Beryllium Copper

JESD-609 Kodu

e4

Sıra Sayısı

1

RoHS Durumu

RoHS Compliant

Termination Post Length

0.092 2.33mm

Orientation

Straight

Montaj

Through Hole

Pitch Post

0.100 2.54mm

ECCN Kodu

EAR99
