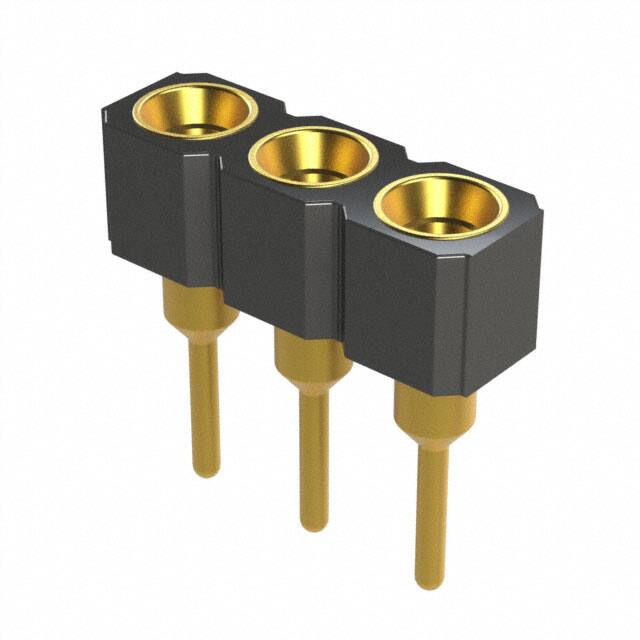

XR2C-0311-N

Teknik Özellikler

Contact Material Mating

Beryllium Copper

Ambalaj

Bulk

Contact Finish Post

Gold

Pitch Post

0.100 2.54mm

Montaj

Through Hole

Termination Post Length

0.126 3.20mm

RoHS Durumu

RoHS Compliant

Tip

SIP

Contact Plating

Gold

Pitch

2.54mm

Özellikler

Closed Frame

Current Rating Amps

1A

Contact Finish Thickness Post

10.0μin 0.25μm

Contact Resistance

20mOhm

Seri

XR2

Contact Finish Thickness Mating

10.0μin 0.25μm

Çalışma Sıcaklığı

-55°C~125°C

Fabrika Tedarik Süresi

11 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Parça Durumu

Active

Kılıf / Paket

SIP

Montaj Tipi

Through Hole

Housing Material

Polybutylene Terephthalate (PBT), Glass Filled

Number Of Positions Or Pins Grid

3 (1 x 3)

Pitch Mating

0.100 2.54mm

Contact Material Post

Beryllium Copper

Pin Sayısı

3

Yayın Yılı

2002

Terminal

Solder
