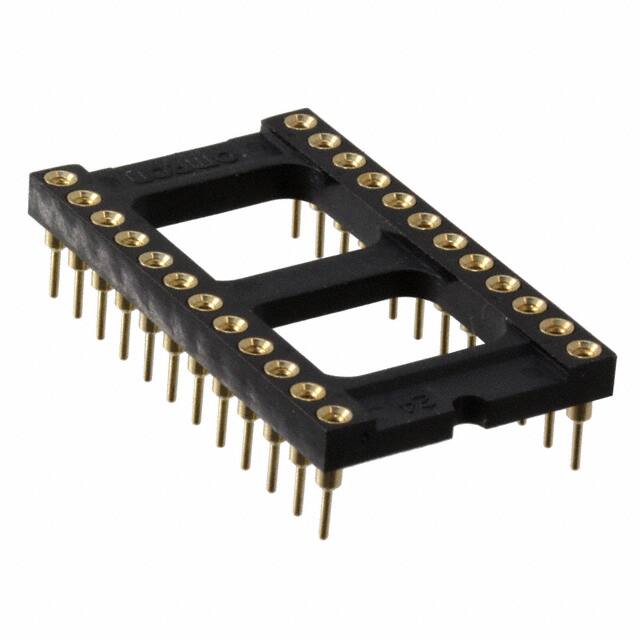

XR2A-4011-N

Teknik Özellikler

Number Of Positions Or Pins Grid

40 (2 x 20)

Row Spacing

15.24 mm

Housing Material

Polybutylene Terephthalate (PBT), Glass Filled

Number Of Contacts

40

Terminal

Solder

Yayın Yılı

2002

Contact Material Post

Beryllium Copper

Pitch Mating

0.100 2.54mm

Parça Durumu

Active

Contact Finish Mating

Gold

Max Current Rating

1A

Max Voltage Rating Ac

300V

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole

Kılıf / Paket

DIP

Contact Finish Thickness Post

10.0μin 0.25μm

Özellikler

Open Frame

Radyasyon Dayanımı

No

Uzunluk

48.26mm

Tip

DIP, 0.6 (15.24mm) Row Spacing

Fabrika Tedarik Süresi

9 Weeks

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

10.0μin 0.25μm

Seri

XR2

Contact Resistance

20mOhm

Voltage Rated Ac

300V

Genişlik

15.24mm

Ambalaj

Bulk

Contact Material Mating

Beryllium Copper

JESD-609 Kodu

e4

Sıra Sayısı

2

Akım Değeri

1A

RoHS Durumu

RoHS Compliant

Insulation Resistance

1GOhm

Termination Post Length

0.126 3.20mm

Orientation

Straight

Montaj

Through Hole

Pitch Post

0.100 2.54mm

ECCN Kodu

EAR99
