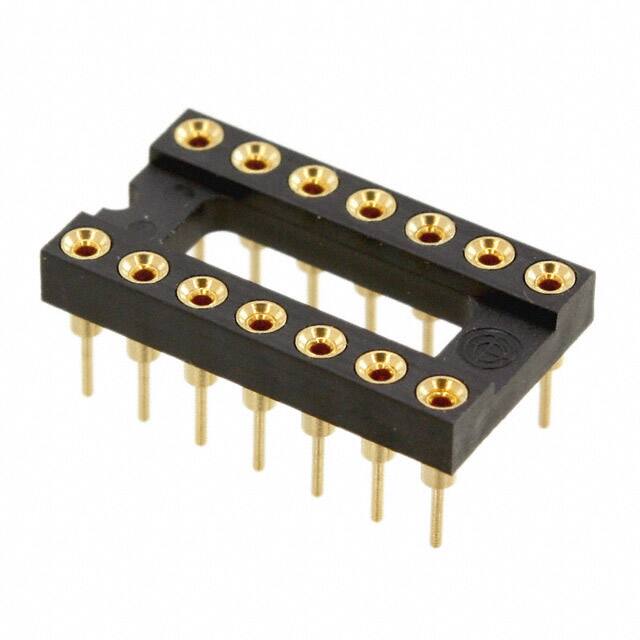

XR2A-3201-N

Teknik Özellikler

Additional Feature

DIP SOCKET, UL 94V-0

Contact Material Mating

Beryllium Copper

JESD-609 Kodu

e4

Sıra Sayısı

2

Voltage Rated Ac

300V

Ambalaj

Bulk

Termination Post Length

0.126 3.20mm

Orientation

Straight

Montaj

Through Hole

Depth

17.78mm

Pitch Post

0.100 2.54mm

ECCN Kodu

EAR99

Akım Değeri

1A

RoHS Durumu

RoHS Compliant

Insulation Resistance

1GOhm

Özellikler

Open Frame

Radyasyon Dayanımı

No

Uzunluk

40.64mm

Tip

DIP, 0.6 (15.24mm) Row Spacing

HTS Kodu

8536.69.40.40

Contact Finish Thickness Post

30.0μin 0.76μm

Contact Finish Thickness Mating

30.0μin 0.76μm

Seri

XR2

Contact Resistance

20mOhm

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-55°C~125°C

Max Voltage Rating Ac

300V

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Contact Finish Mating

Gold

Max Current Rating

1A

Insulation Materials

Polybutylene

Contact Materials

Copper

Montaj Tipi

Through Hole

Gender

Female

Row Spacing

15.24 mm

Housing Material

Polybutylene Terephthalate (PBT), Glass Filled

Number Of Contacts

32

Number Of Positions Or Pins Grid

32 (2 x 16)
