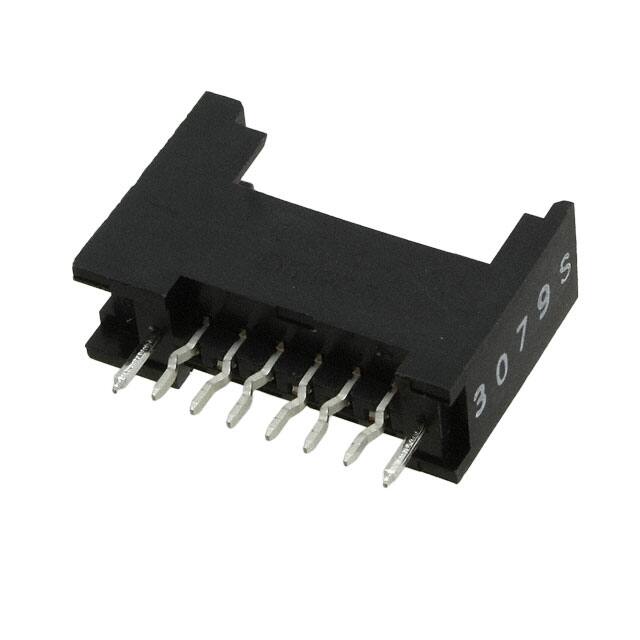

XN2D-1671

Teknik Özellikler

Option

GENERAL PURPOSE

Connector Type

Receptacle

Din Conformance

NO

Mating Contact Pitch

0.079 inch

Özellikler

Board Guide

Terminal Adımı

2mm

Insulation Height

0.512 13.00mm

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Insulation Color

Black

Orientation

Straight

Montaj Tipi

Through Hole

Ambalaj

Bulk

Pozisyon Sayısı

6

Mixed Contacts

NO

Durability

50 Cycles

Voltage Rated Dc

32V

Montaj

Through Hole

Fabrika Tedarik Süresi

6 Weeks

Parça Durumu

Active

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-30°C~75°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Max Voltage Rating Dc

32V

Insulation Materials

Polybutylene Terephthalate (PBT)

Style

Board to Cable/Wire

Number Of Positions Loaded

All

Sıra Sayısı

1

Contact Finish Thickness Mating

8.00μin 0.203μm

Nominal Gerilim

32VDC

Fastening Type

Detent Lock

Akım Değeri

3A

Body Breadth

0.252 inch

Seri

XN2

Number Of Pcb Rows

1

Filter Feature

NO

Iec Conformance

NO

Number Of Conductors

ONE

Contact Finish Post

Tin
